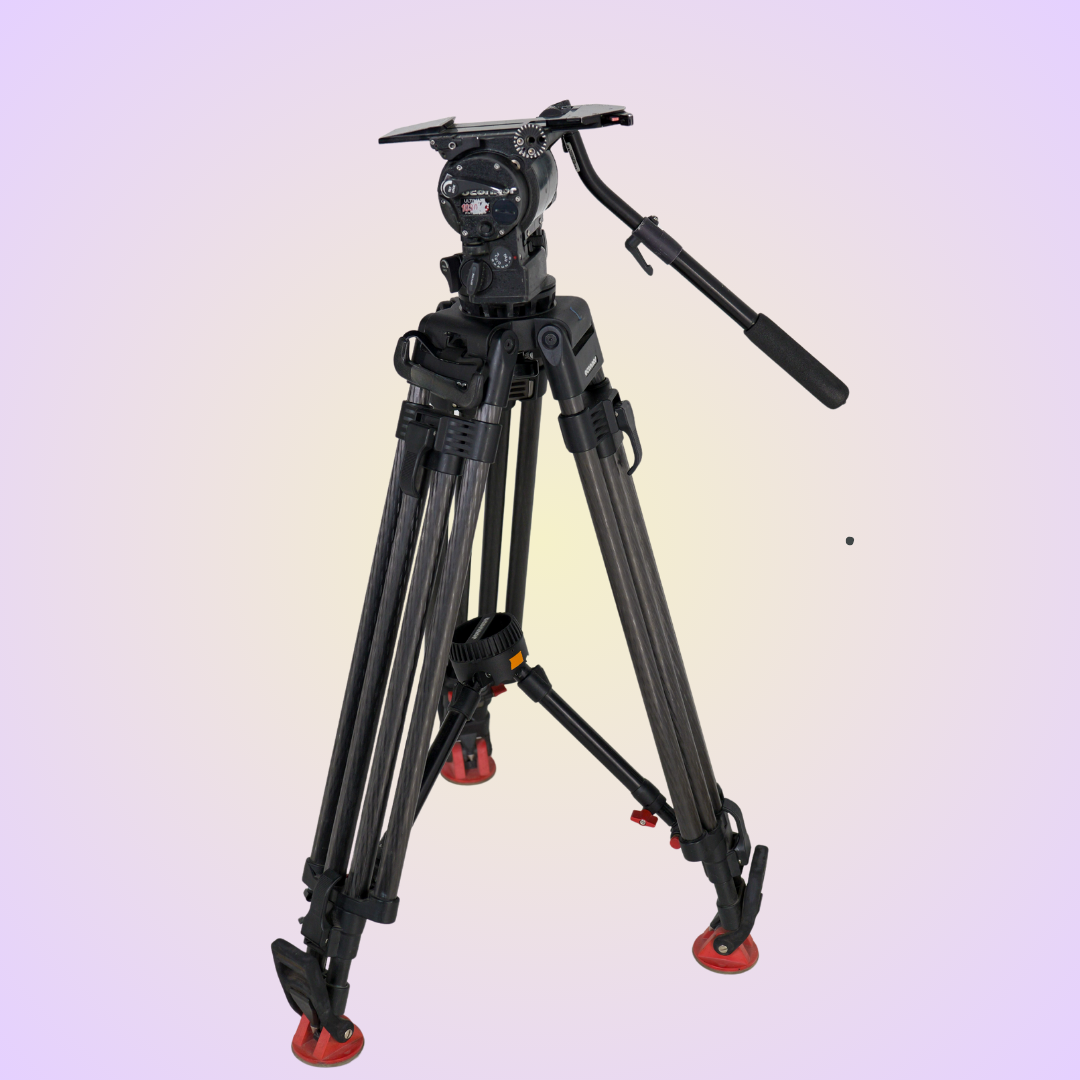

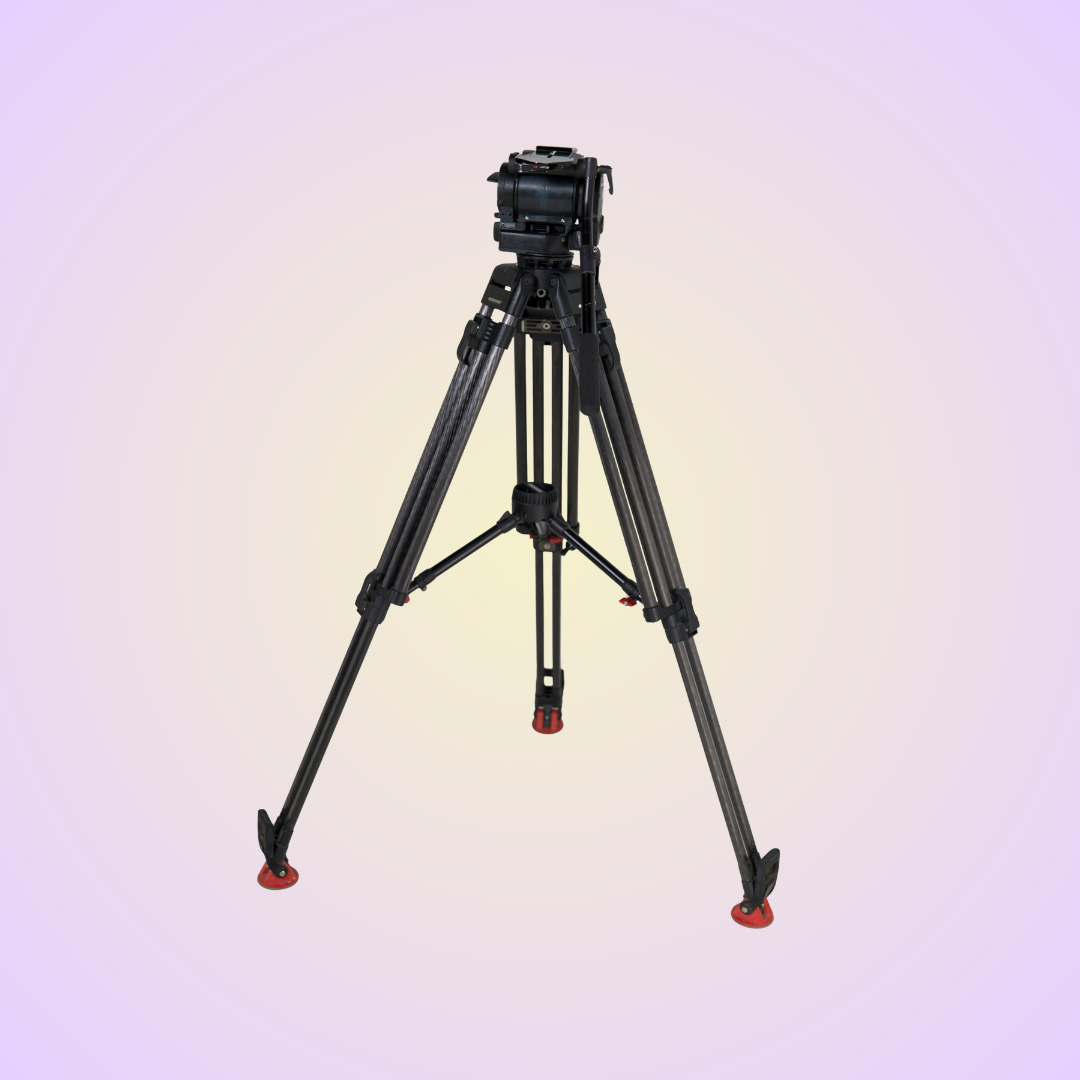

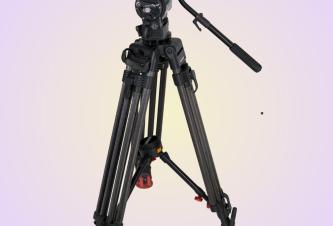

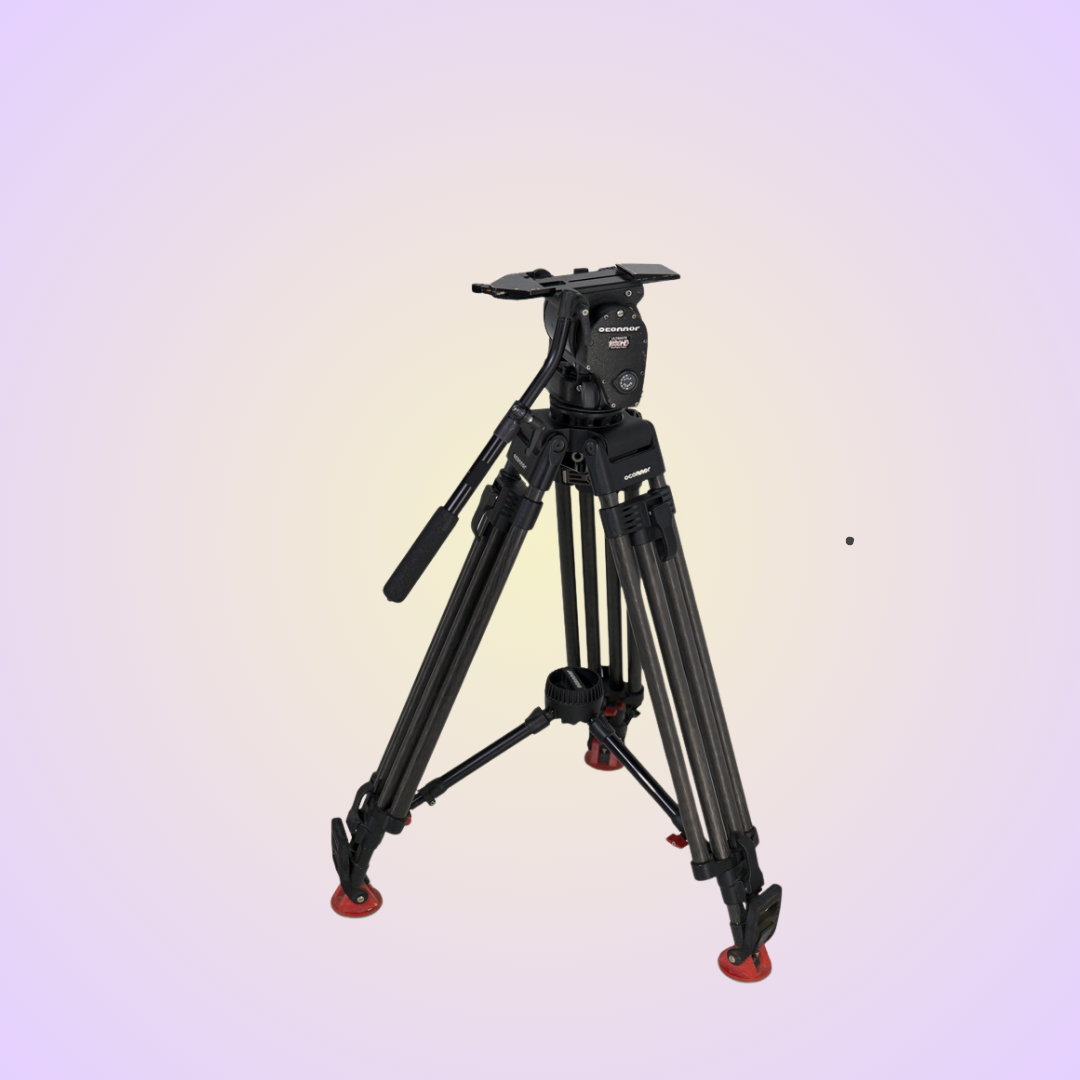

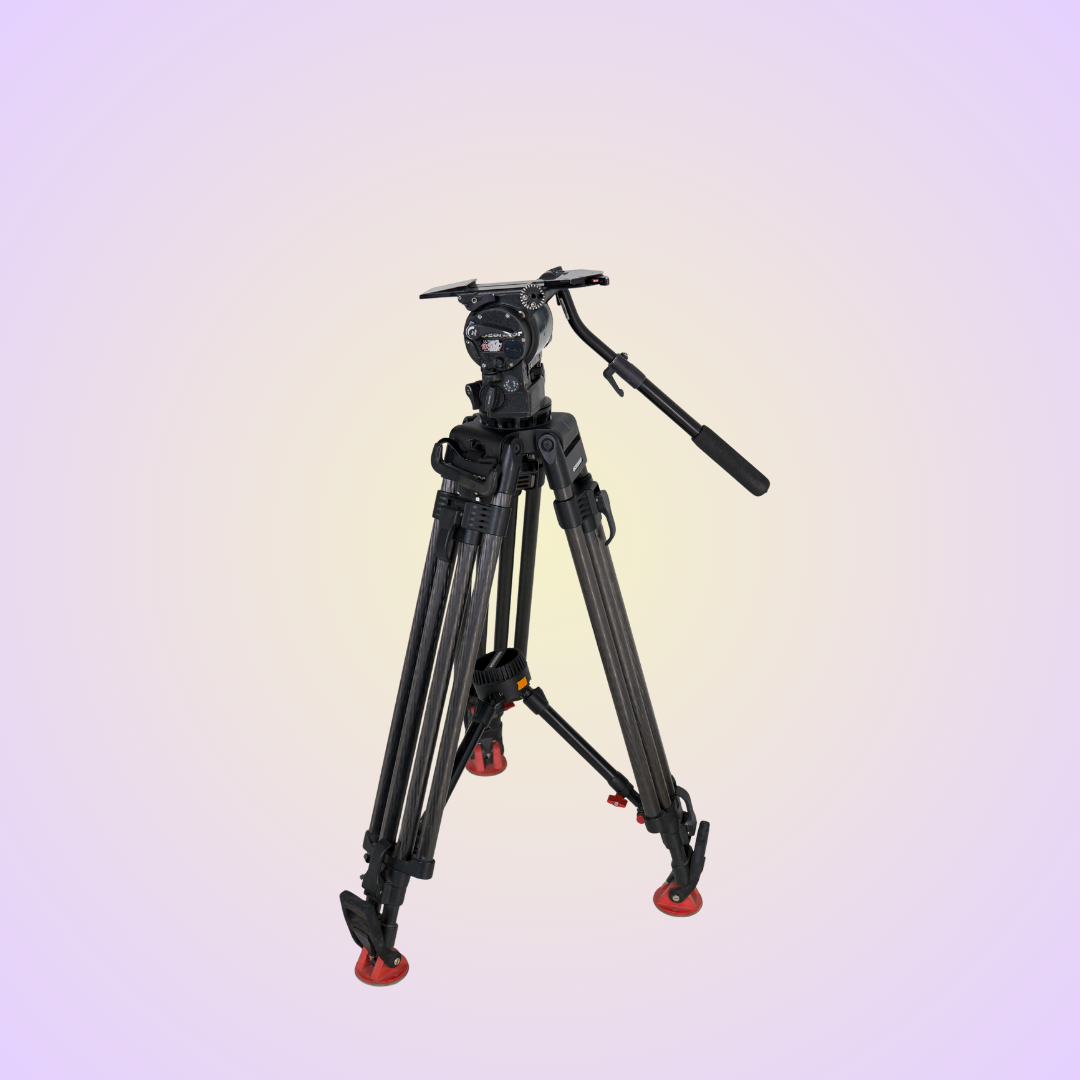

OConnor Ultimate 1030D Fluid Head & 30L CF Tripod w/ Mid-Level Spreader

• $5500.00

  Contact New Pro

• OConnor Ultimate 1030D Fluid Head &  30L CF Tripod w/ Mid-Level Spreader

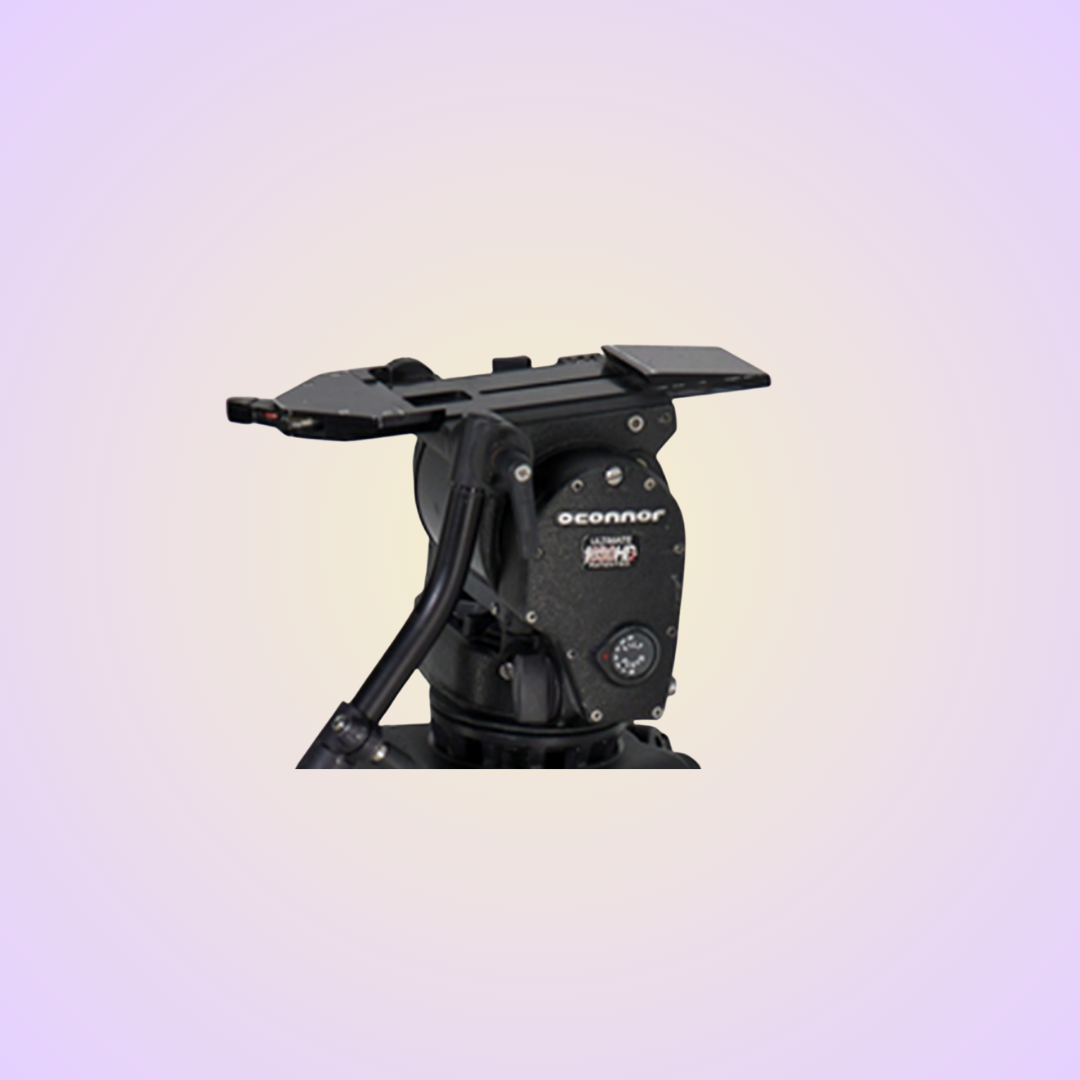

  The OConnor 1030D Fluid Head comes equipped with a sideload platform and sliding baseplate for fast, easy camera mounting—no need to slide from the rear. It supports 90° forward and backward tilt, perfect for extreme angle shots, and offers independent pan and tilt drag controls with dedicated locks.

  Key features include:

  100mm removable ball base (interchangeable with other options)

  Illuminated bubble level for low-light setups

  Dual rosettes for left/right pan handle positioning

  Front box mounting points for accessories

  Eyepiece leveler attachment capability

  Supports up to 30 lbs at 6" COG

  Paired with the OConnor 30L Carbon Fiber Tripod, this system includes 2-stage carbon fiber legs, mid-level spreader, and rubber feet. It supports payloads up to 209 lbs and extends from 22" to 61.8". Compatible with all 100mm ball heads like the 1030D and 1030Ds.





  Ultimate 1030D Fluid Head

  Load Capacity:                                 39lb

  Counter Balance System:                    Continuous

  Tilt Range:                                       +90 to -90 degrees

  Tilt Drag:                                          Continuously adjustable from 1 to 5

  Tilt Lock:                                          Yes

  Pan Range:                                       360 degrees

  Pan Drag:                                         Continuously adjustable from 1 to 5

  Pan Lock:                                         Yes

  Mounting Base:                                100 mm ball base (interchangeable)

  Weight:                                             8.7lb.



  30L Carbon Fiber Tripod

  Leg Stages/Sections:              2 Stage

  Height Range

  Maximum:                                      61.8"

  Minimum:                                       22"

  Load Capacity:                         209lb.

  Material:                                         Carbon Fiber legs

  Spreader:                                        Mid level, removable

  Collapsed Height:                 29.5"

  Weight:                                           8.8 lb
