MovieBird 45 Crane

Evaluated By MovieBird and Barely Used

Have A Serious Offer?
Let's talk!
Financing Available! Contact Us For More Information

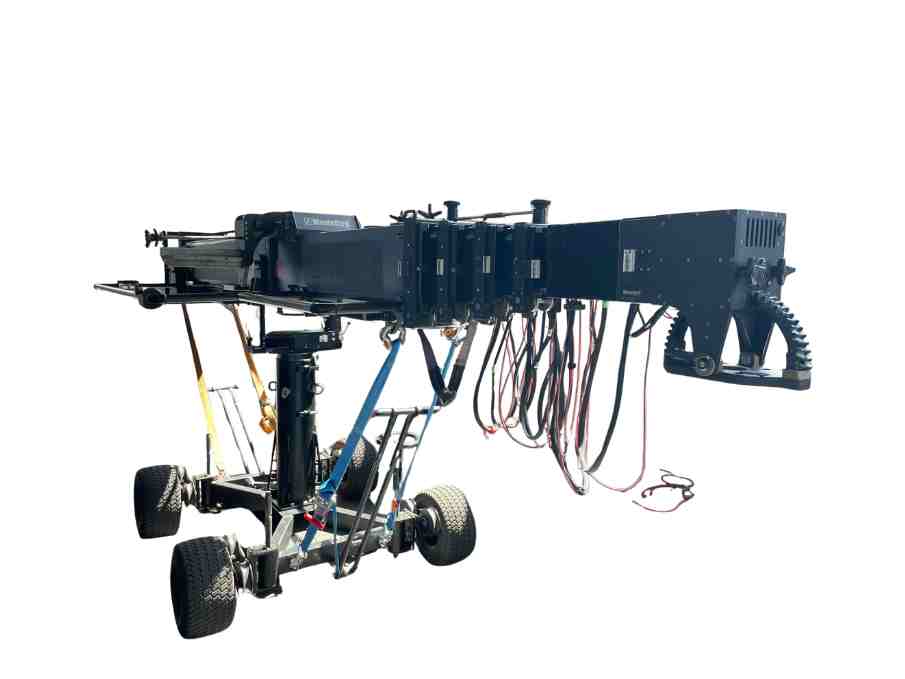

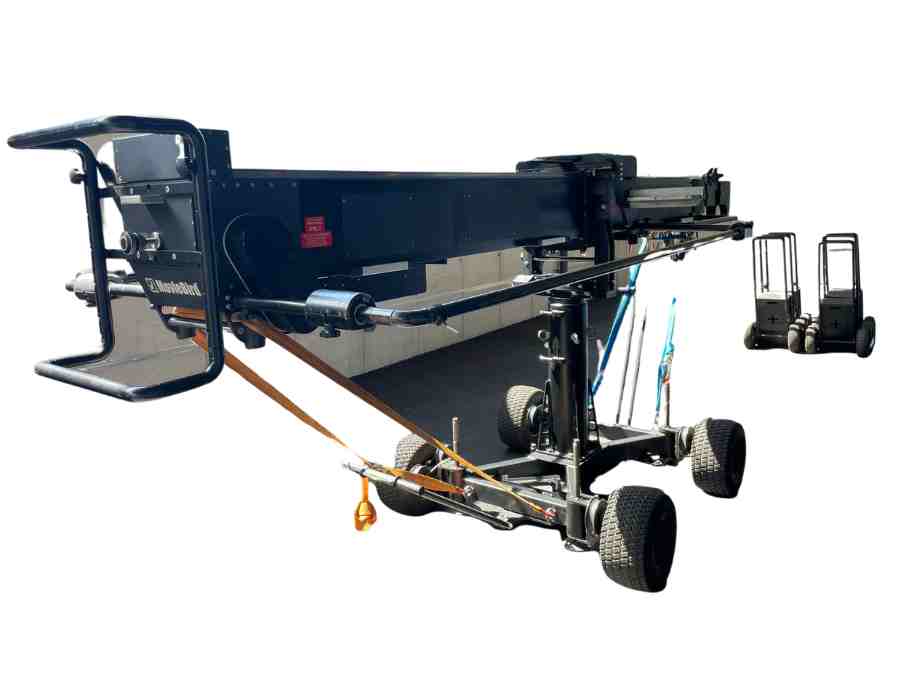

The MB45 is a relatively versatile telescopic crane suitable for any film set or TV studio as this crane has the same dolly ‘footprint’ as the smaller MB30 crane. It is universal to work with and depending on the type and weight of the camera package carried it is possible to modify the length and reach of the arm from 35 feet to 45 feet in just a few minutes.

Counterweights

4- Sliding Counterweight

Counterweight 1/2

3- Counterweight 1/4

4- Counterweight 1/6

4- Counterweight 1/8

3- Counterweight ¾

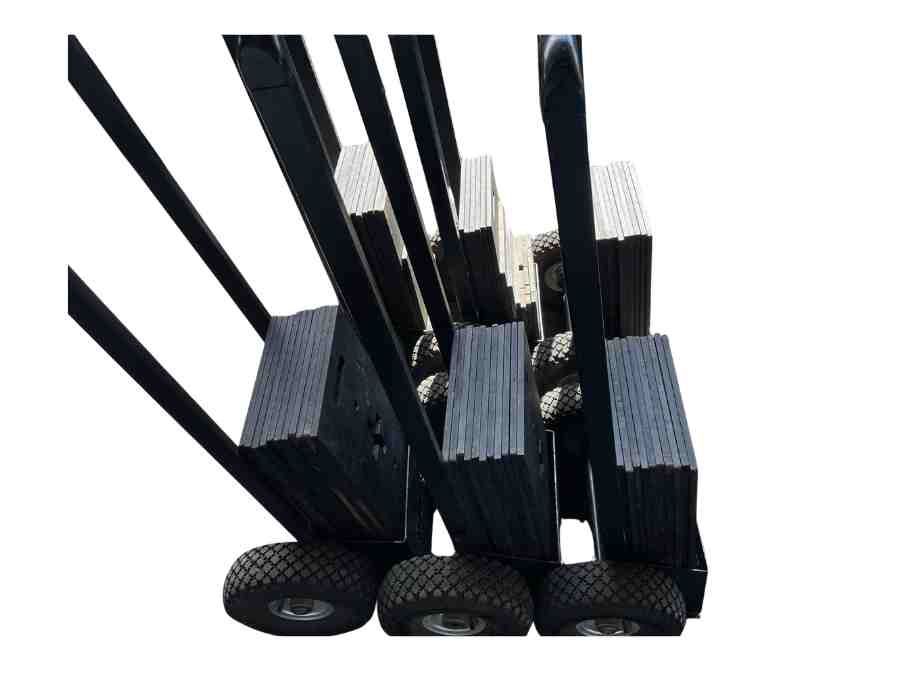

6- Counterweight Cart

60- Counterweight Full

Spare Nose

17 Rachet Adapter

24 Rachet Adapter

Allen Key 5

American To Schuko Adapter

Bicycle Multi Tool

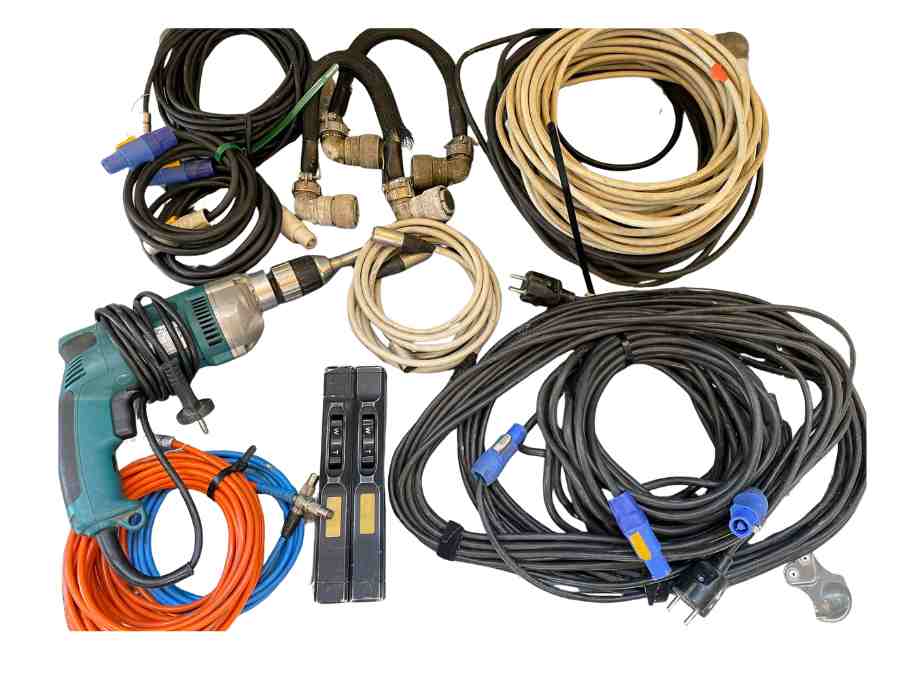

2- Com + Power Cable (MB30)

Electric Drill + 24 Key

7- Fork Keys 14,15,17,19,22,24,7

MB Power Cable

Mitchell Key

Philips Screwdriver

SDI BNC to SDI LEMO

SDI Cable

Spare Chain w Toothed Gear

Spare Nose For MB45

Spare Remote w Short Cable

Power Box

Power Box For MB45

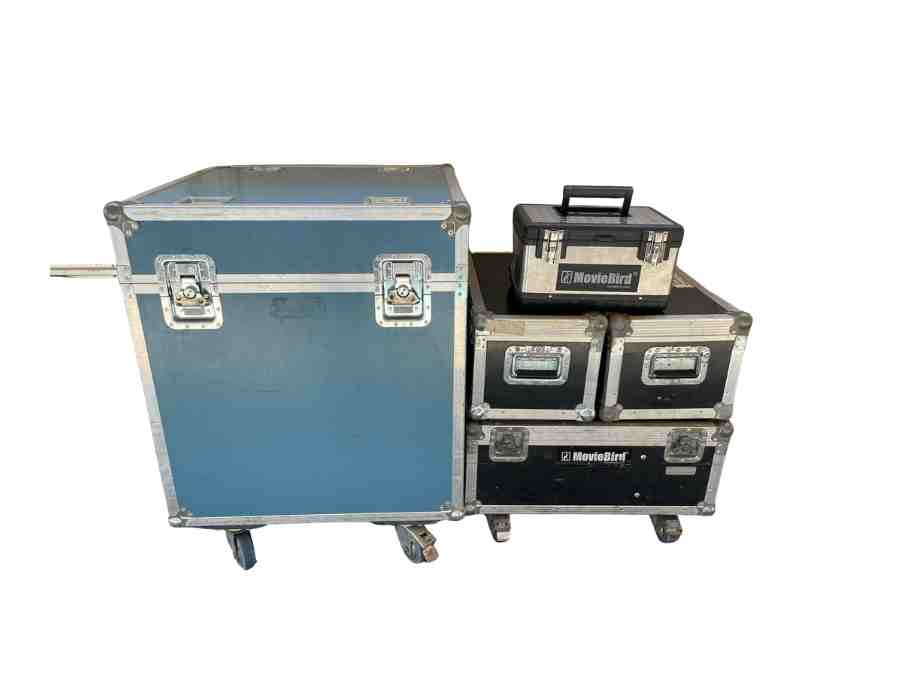

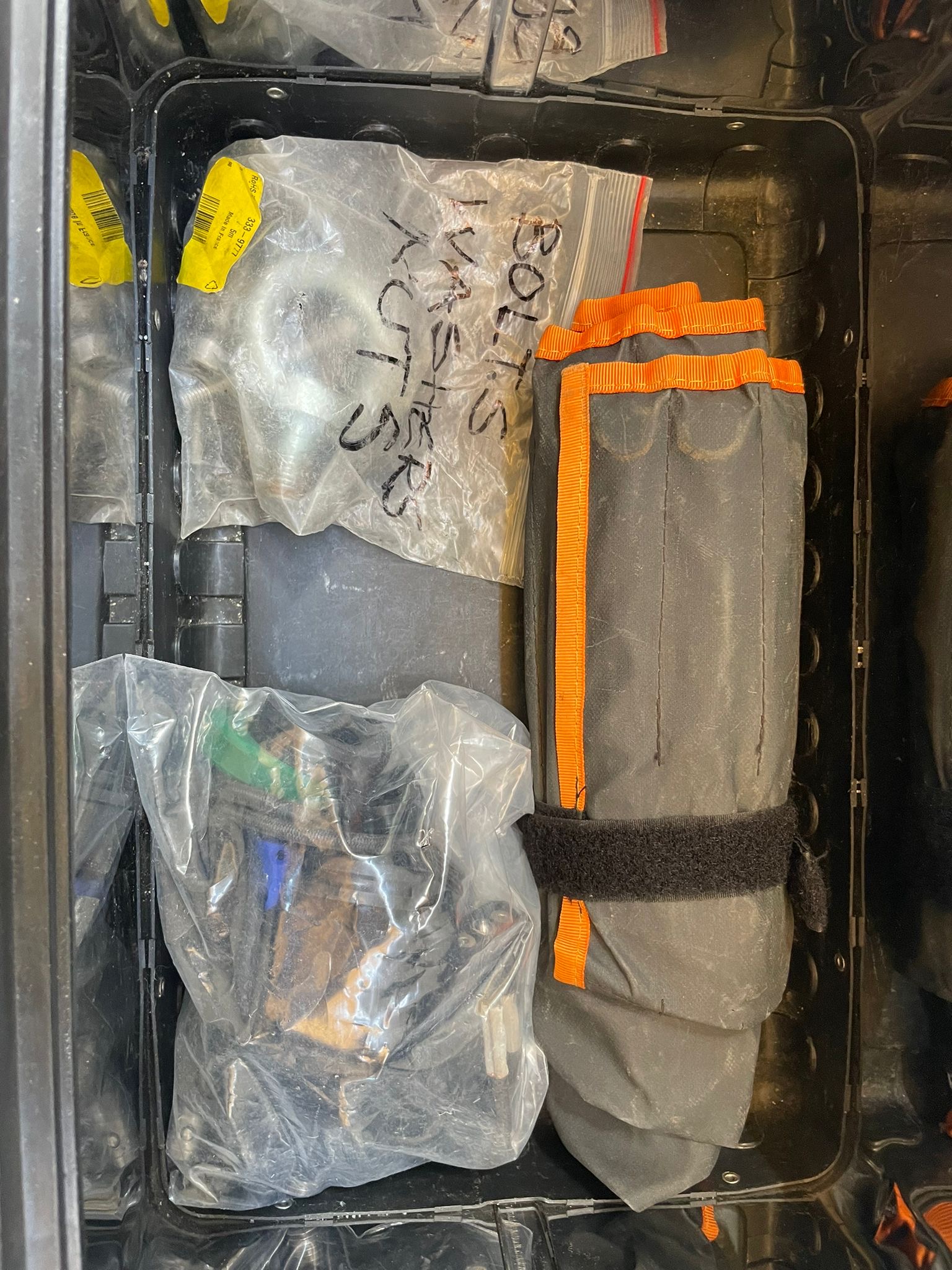

Tool Box

2- Multicore Cable 17 Pin

Spare Electronic Box

Power Cable Schuko

Remote Control

XLR Cable 7 Pin Long

XLR Cable 7 Pin Short

Specifications

Max. nose load: 50 kg / 110 lbs

Max. extension speed: 1,5 m/s / 4,9 ft/s

Arm weight with a Yoke: 610 kg / 1345 lbs

Base weight: 215 kg / 474 lbs

Base weight with column: 300 kg / 661 lbs

One counterweight: 16 kg / 35,3 lbs

Amount of counterweights: 60

Crane weight incl. counterweights: 1910 kg / 4210 lbs

Height: 11,1 m / 36,4 ft

Overall length: 16,2 m / 53,15 ft

Telescopic range: 11,15 m / 36,5 ft

Maximum reach: 13,8 m / 45,25 ft

Rails: 1 m / 3,3 ft

Min. door height: 2,05 m / 6,72 ft

Amount of counterweight carts: 6
