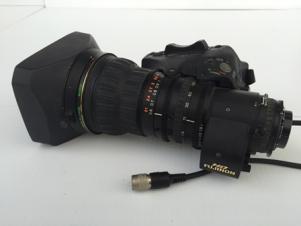

Fujinon HA18x7.6 BERM Standard HI Def ENG Style

EXCELLENT CONDITION!
HAS ALAC/CAC

Fuji HA18x7.6 BERM is an HD standard lens ENG style lens with a standard digital drive for servo zoom and manual focus control. Fuji HD lenses are manufactured to the highest standards based on a design that integrates mechanics and electronics with optics at the core. The result is superior resolution established definition and distinct functionality.

FEATURES

Digi Power improves accuracy and repeatability over previous designs and enables custom control parameters to be memorized for individual camera operator's preference

Quick Zoom provides a rapid zoom movement to the telephoto position to check focus with a simple push of a button

Zoom Mode Select changes the zoom response from normal to more sensitive on the wide or telephoto side

Zoom Limit limits either the wide side and/or telephoto side to capture desired shot angles

Auto-Cruising Zoom fixes the zoom speed at a preset rate while zooming

Serial Digital Remote Control by PC provides accurate positioning for virtual studios and other applications requiring digital precision

Accessory Compatibility allows analog control accessories to work seamlessly with the DIGI POWER Lens

This lens is also available with focus and zoom servos. Ask for Fujinon HA18x7.6 BERD Standard ENG Style Zoom Lens (FI-HA18x7.6BERD). It is also available without the 2x extender; ask for FI-HA18x7.6BRM-M.

SPECIFICATIONS

Camera Format: 2/3"

Focal Length:
(1X) 7. 6 to 137 mm
(2X) 15.2 to 274mm

Zoom Ratio: 18X

Extender: 2X

Maximum Relative Aperture:
1:1.8 (7.6 ~ 105 mm)
1:2.4 (137 mm)

Maximum Photometric Aperture T-No.: T1.9~T3.8

Minimum Object Distance from Image Plane: 0.84m

M.O.D. from Front of Lens: 0.6 m

Object Dimensions at M.O.D.:
(1X) 7.6 mm 738 x 415 mm
137 mm 41 x 23 mm
(2X) 15.2 mm 369 x 207 mm
274 mm 21 x 12 mm

Angular Field of View:
(1X) 7.6 mm 64° 30' x 39° 03'
137 mm 4° 01' x 2° 15'
(2X) 15.2 mm 35° 01' x 20° 07'
274 mm 2° 00' x 1° 08'

Filter Size: ø 82 mm P=0.75

Size (Diameter x Length): ø 85 X 204 mm

Weight (w/o hood): 3.64lbs (1.65kg)
