Home / Pre-Owned Lenses / Cinema Lenses / Angenieux Optimo DP 16-42 T.2.8, PL mount Cinema Zoom Lens
Angenieux Optimo DP 16-42 T.2.8, PL mount Cinema Zoom Lens Angenieux Optimo DP 16-42 T.2.8, PL mount Cinema Zoom Lens Angenieux Optimo DP 16-42 T.2.8, PL mount Cinema Zoom Lens Angenieux Optimo DP 16-42 T.2.8, PL mount Cinema Zoom Lens
<
>
Angenieux Optimo DP 16-42 T.2.8, PL mount Cinema Zoom Lens Angenieux Optimo DP 16-42 T.2.8, PL mount Cinema Zoom Lens Angenieux Optimo DP 16-42 T.2.8, PL mount Cinema Zoom Lens Angenieux Optimo DP 16-42 T.2.8, PL mount Cinema Zoom Lens

Angenieux Optimo DP 16-42 T.2.8, PL mount Cinema Zoom Lens

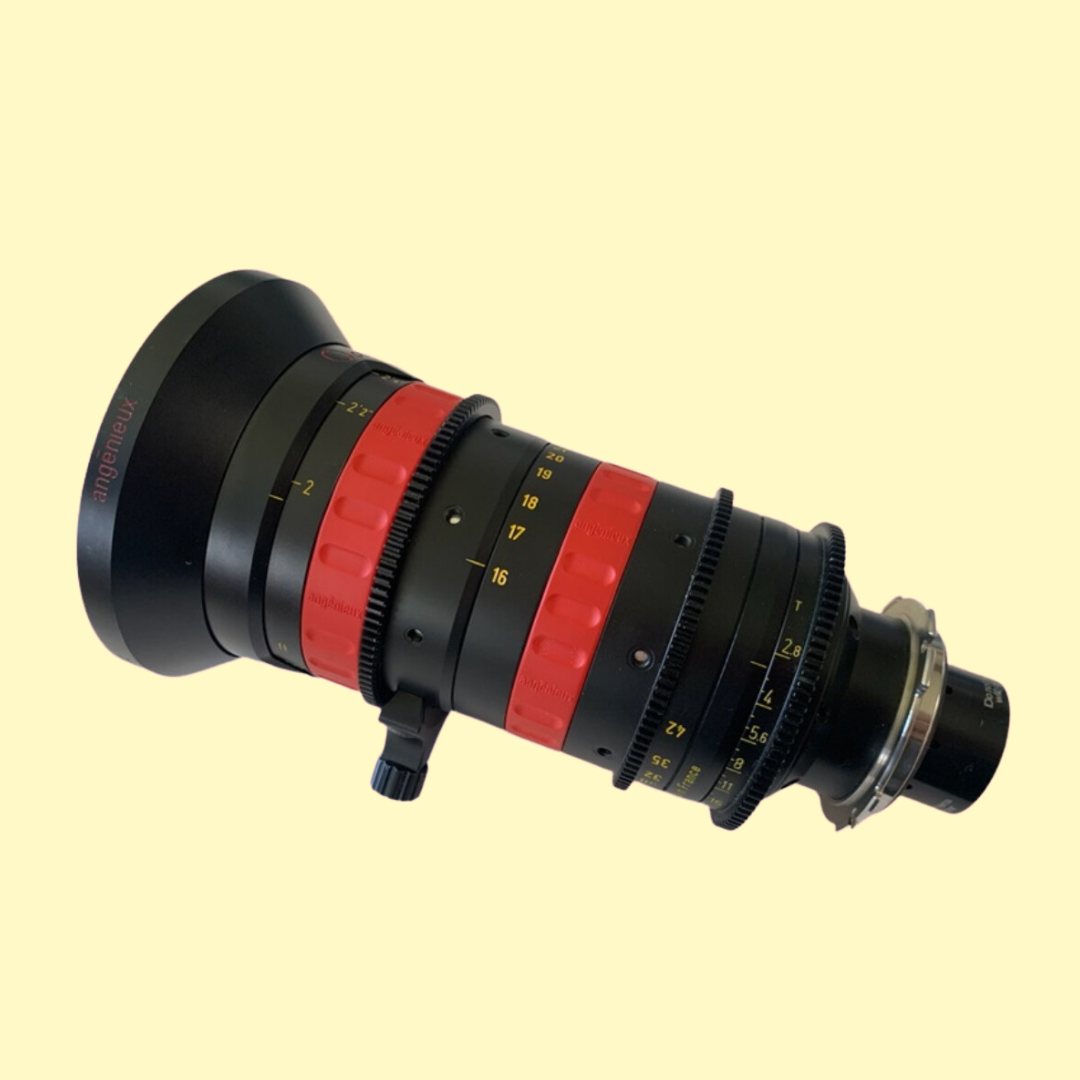

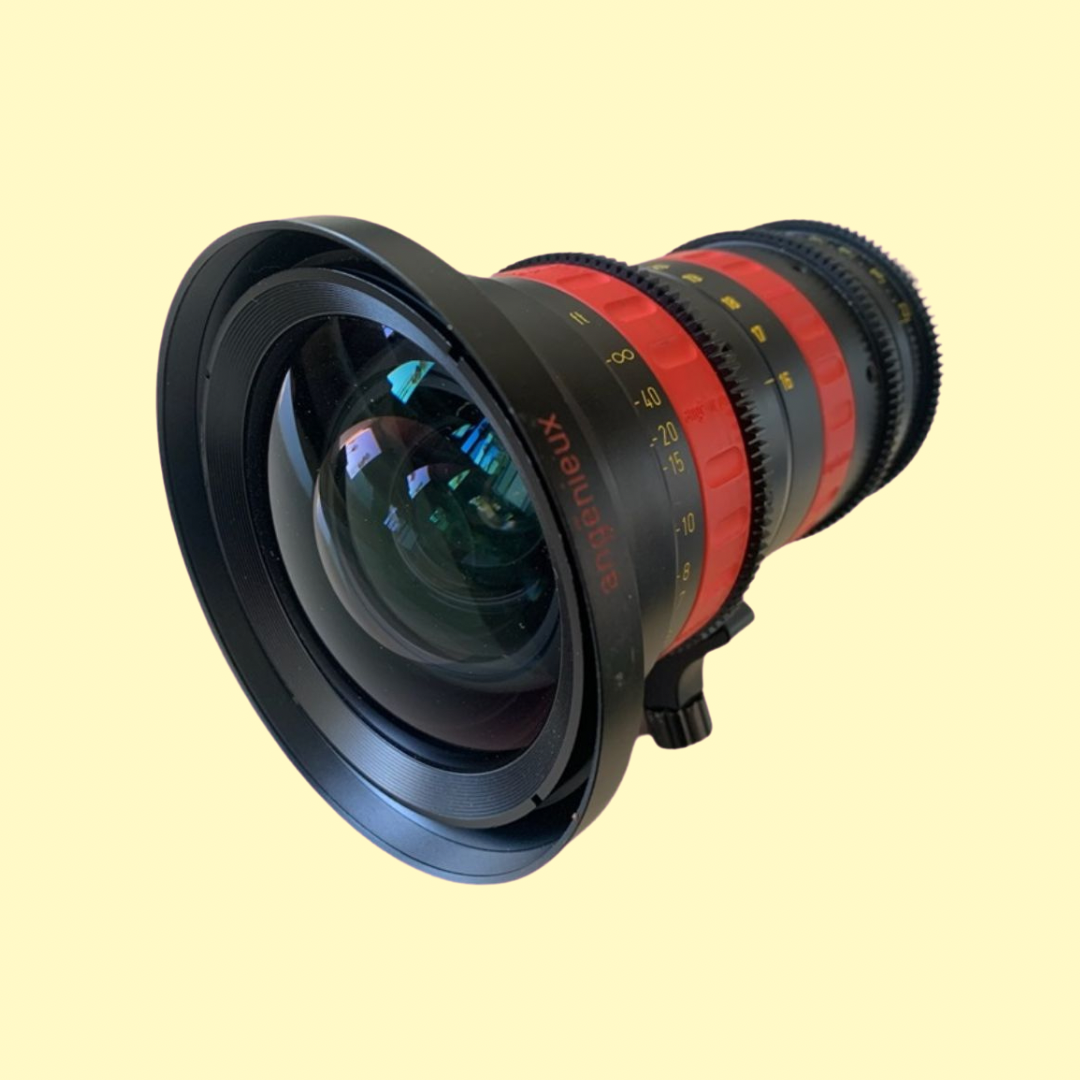

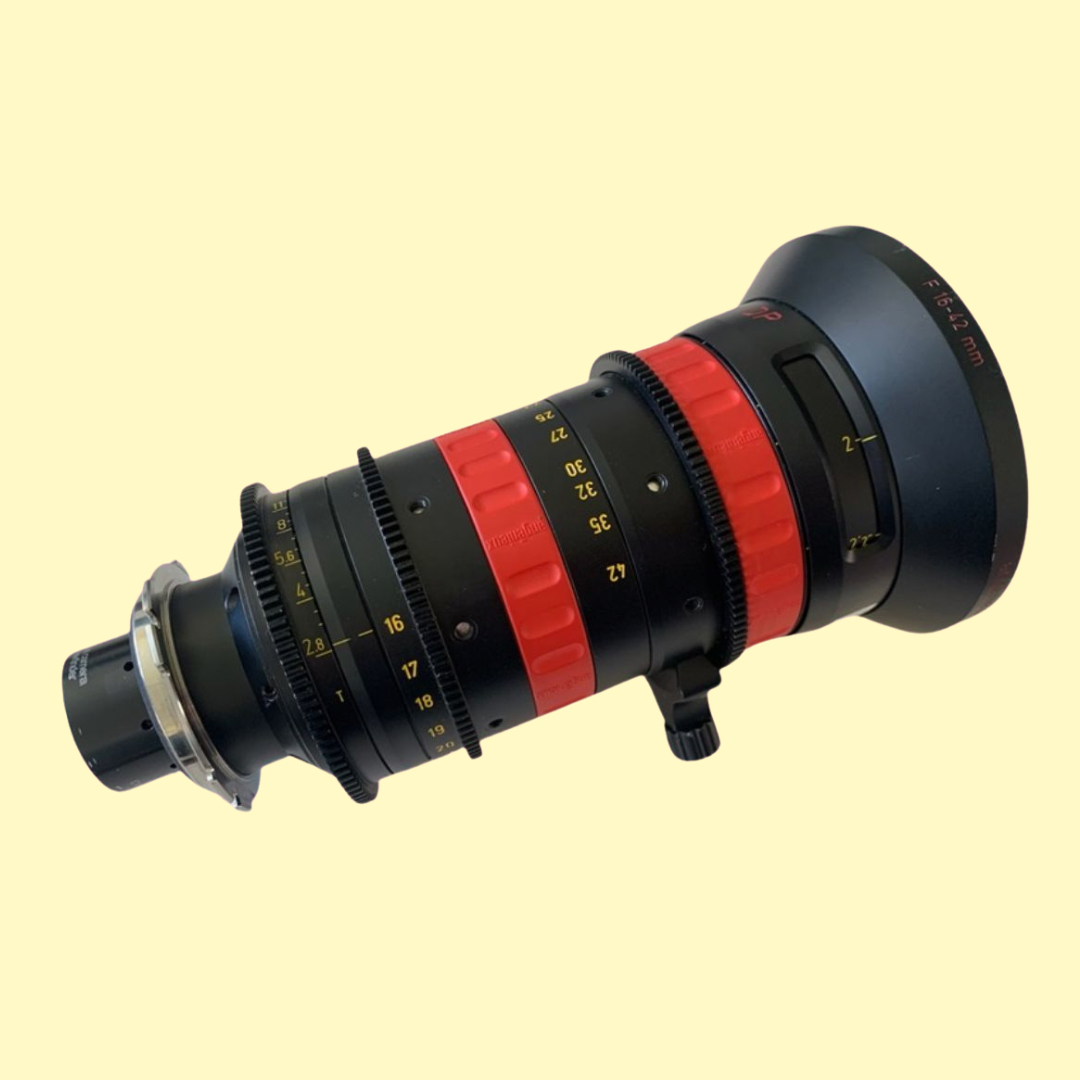

SOLD! Angenieux Optimo DP 16-42 T.2.8, PL mount Cinema Zoom Lens

S35

Owner Operator

Never a Rental Lens

 Features

  • No ramping, no breathing
  • Calibrated focus marks in feet or meters
  • Tracking adjustments
  • Precise zoom and focus through unique Optimo mechanical design
  • Optical design optimized for today's large format single sensor 4K and 5K cameras
  • Lightweight and compact
  • PL Mount



Specifications

Zoom Ratio: 2.6x

Focus Type: Internal

Focal Length 16 - 42mm

Coverage: S35 Full (31.1mm diagonal)

Aperture: T:2.8 - no ramping

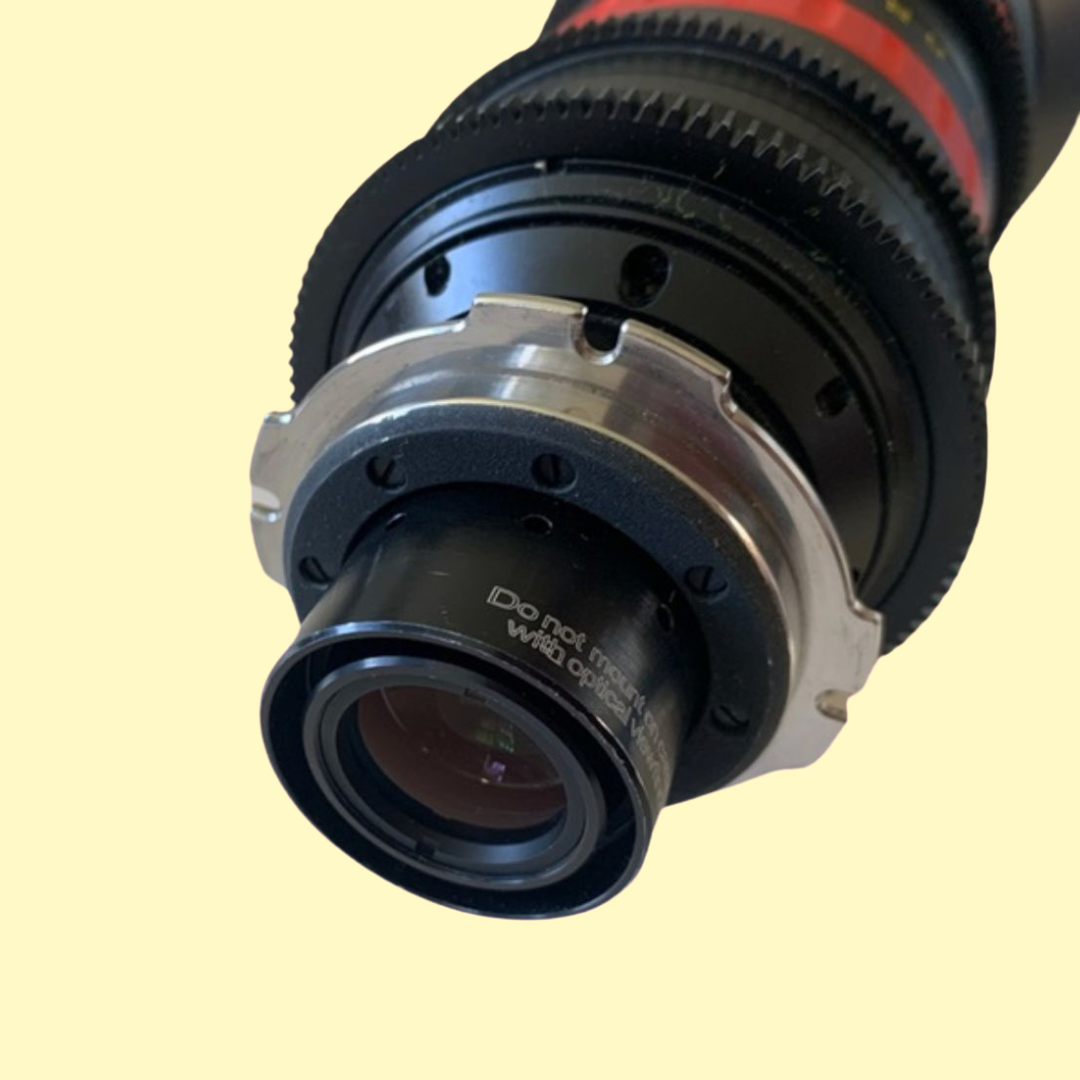

Lens Mount: PL

Field of View: 75.4 (16mm) - 32.4° (42mm)

Minimum Object Distance (M.O.D.): 2' (0.61 m)

Dimensions Length: 7.48" (190mm) (from front barrel)

Front diameter: 4.48" (114mm)

Weight: 4.2 lb (1.9 kg)
