Moviebird 35/45 Telescopic Crane

 Represented to be in GREAT Working Condition

Have A Serious Offer?
Let’s Talk!
Financing Available! Contact Us For More Information

A fun fact! This MB45 telescopic crane had been utilized in the production of notable films such as "Where the Crawdads Sing" and "Interview with a Vampire." Its versatility and capabilities likely contributed to its selection for these projects, as it can adapt to different shooting requirements and provide smooth and dynamic camera movements. It's always interesting to learn about the equipment used in the creation of beloved films.

Comes with

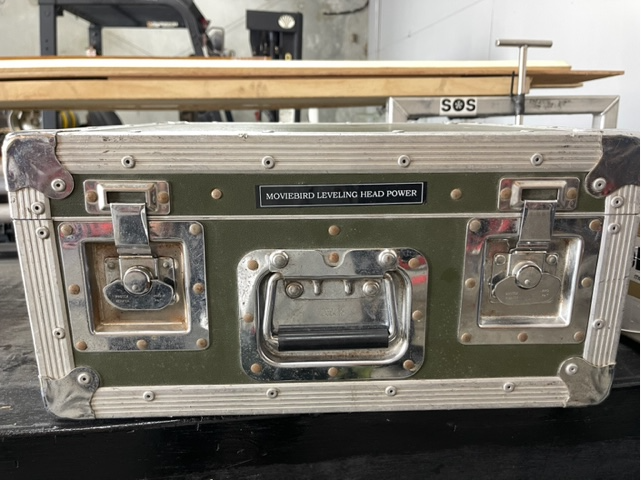

Leveling Head

Cabling

Weights

Battery platforms on chassis

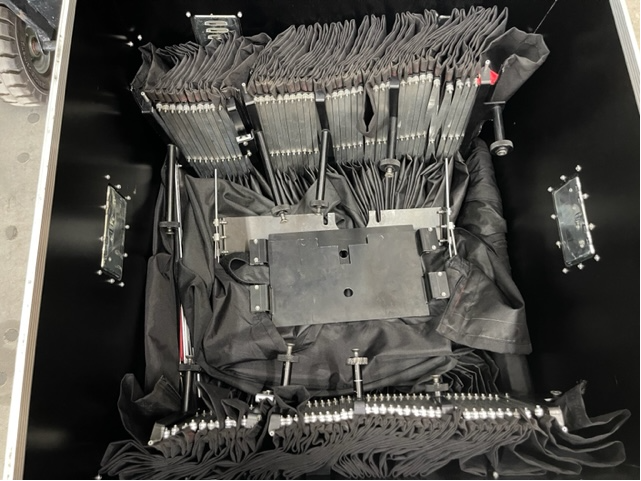

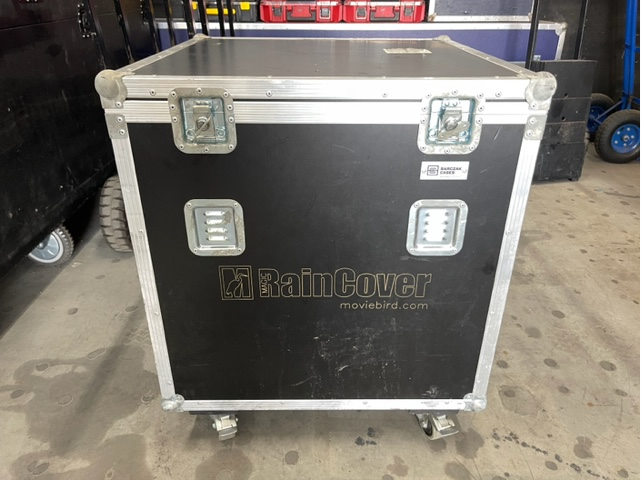

Rain Cover

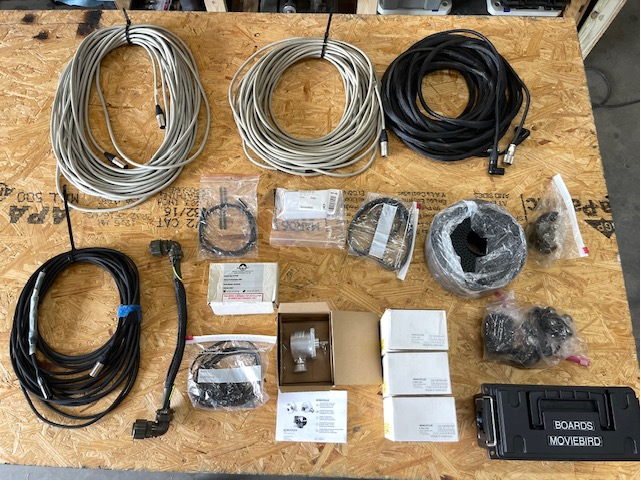

Extra Parts

2-30m Pickle Cables
10m Pickle Cable
Spare Leveling Head Loom
*NEW* Spare Power Box Mil-Spec Cable
*NEW* Spare Levelling Head Encoders
*NEW* Spare Traco Power Module

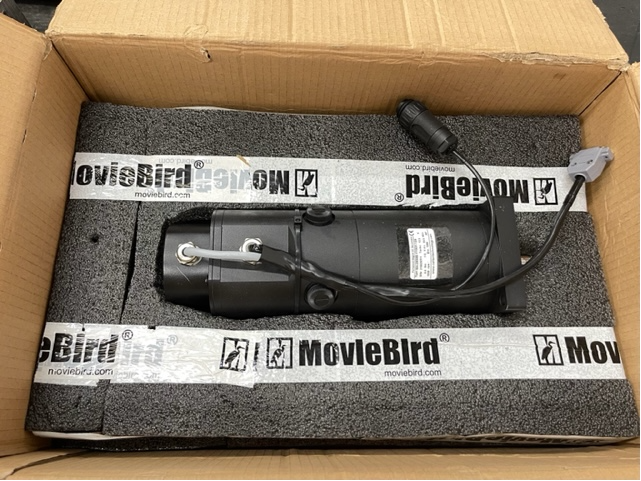

*NEW* Spare Motor
Motor Shroud Gasket
Spare Belts
Spare Cable Trolleys
Cable Tensioner
Gear Reducer

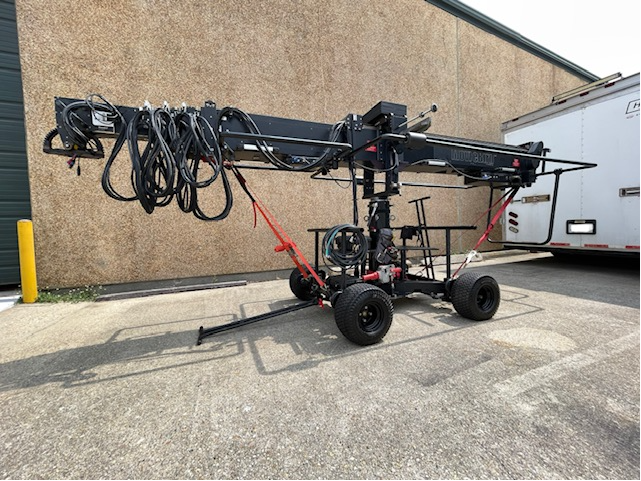

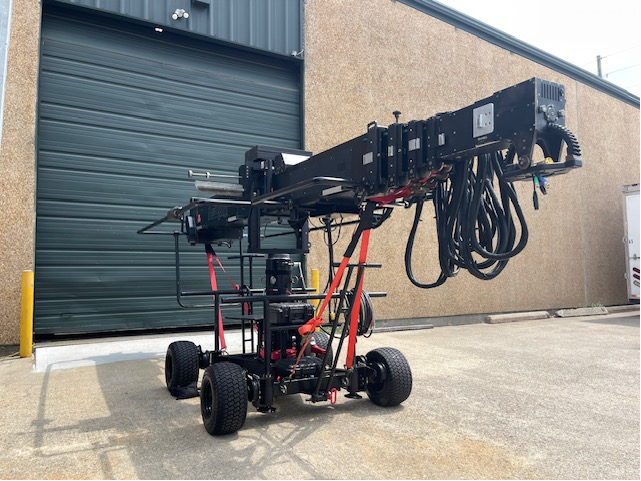

The MB45 is a highly versatile telescopic crane that is well-suited for use on film sets and TV studios. It shares the same dolly 'footprint' as the smaller MB30 crane, making it easy to integrate into existing setups. The crane can be adjusted to different lengths and reaches, ranging from 35 feet to 45 feet, depending on the camera package's weight and requirements. This flexibility allows for quick modifications to accommodate various shooting scenarios.

One of the key advantages of the MB45 is its compact size and lightweight design when disassembled. This makes it convenient to transport using a standard 16-ton truck or a custom trailer. The crane's portability ensures that it can be easily moved between different locations, providing filmmakers with greater flexibility.

Due to its exceptional features and capabilities, the MB45 is currently in high demand and is considered the most sought-after telescopic crane on the market. Its versatility, ease of use, and transportability make it a valuable tool for any production.

Specifications

Max. nose load: 50 kg/110 lbs

Max. extension speed: 1,5 m/s /4,9 ft/s

Arm weight with a Yoke: 610 kg/ 1345 lbs

Base weight: 215 kg/ 474 lbs

Base weight with column: 300 kg /661 lbs

One counterweight: 16 kg /35,3 lbs

Amount of counterweights: 60

Crane weight incl. counterweight: 1910 kg/ 4210 lbs

Height: 11,1 m /36,4 ft

Overall lenght: 16,2 m/ 53,15 ft

Telescopic range: 11,15 m/ 36,5 ft

Maximum reach: 13,8 m/ 45,25 ft

Rails: 1 m /3,3 ft

Min. door height: 2,05 m/ 6,72 ft

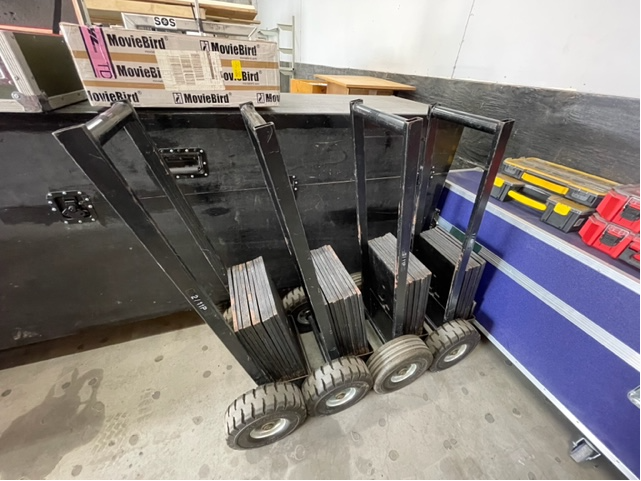

Amount of counterweight carts: 6
