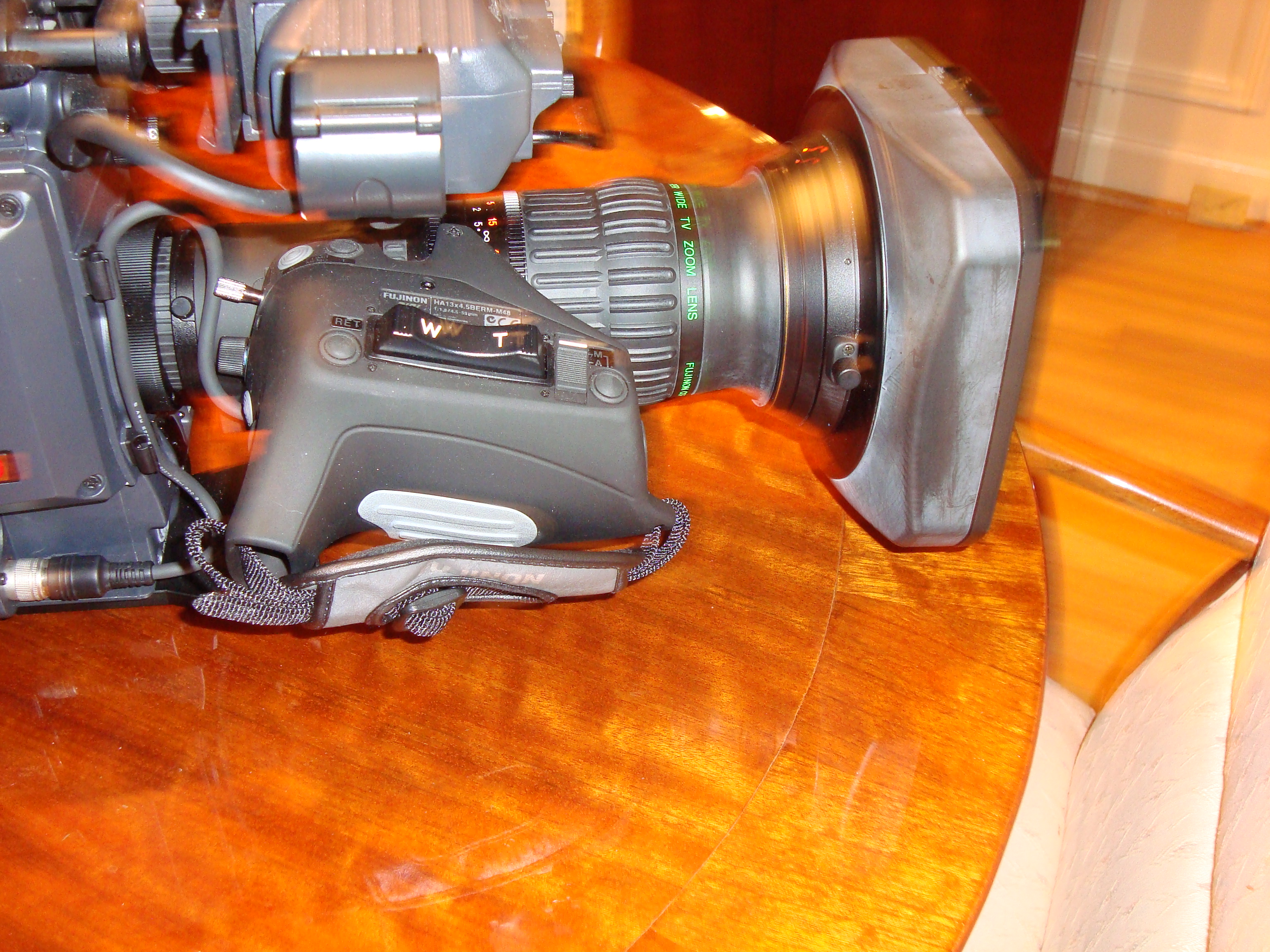

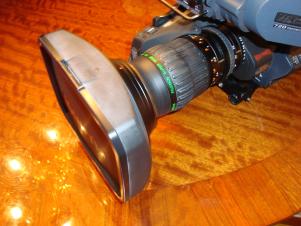

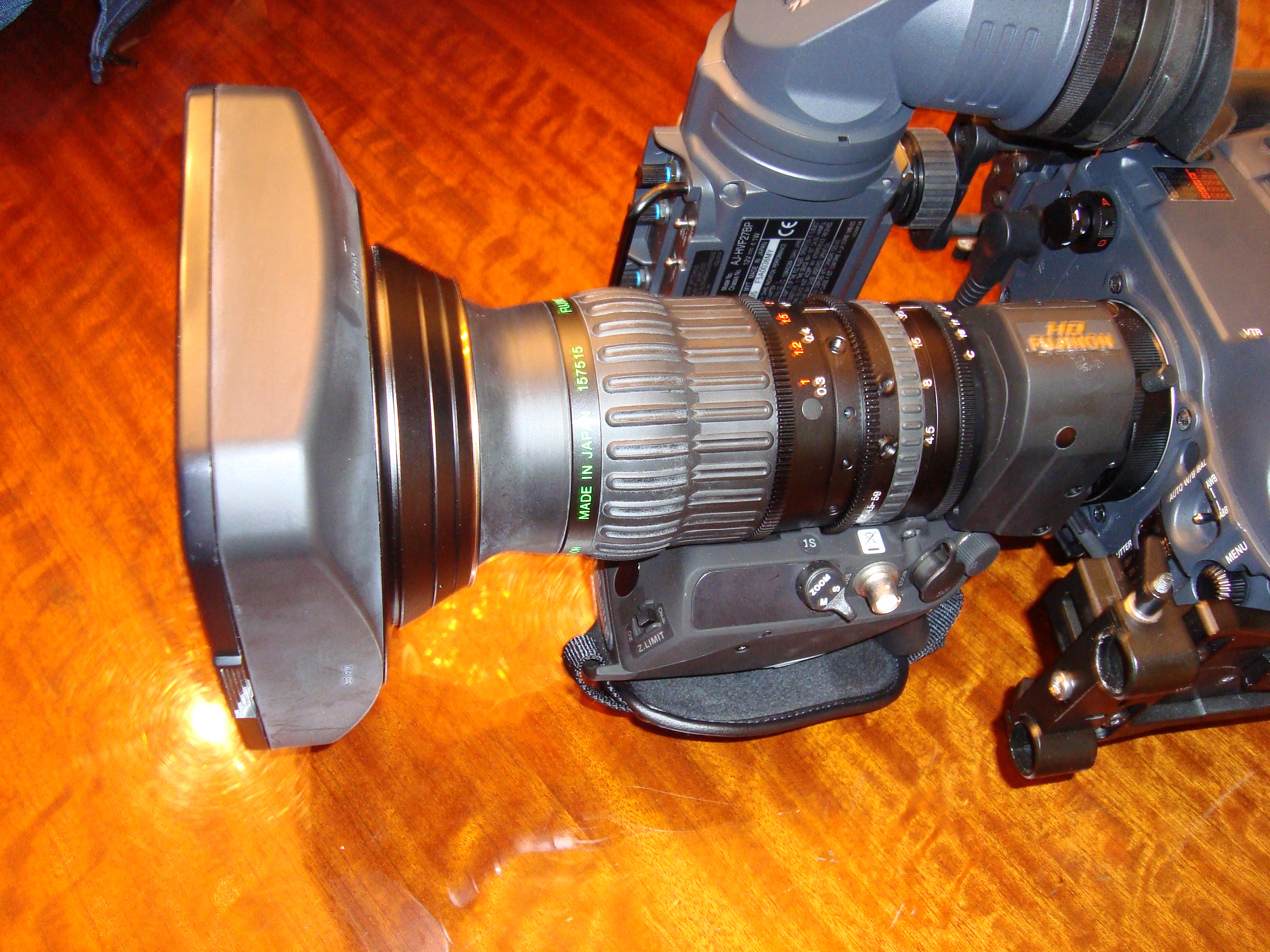

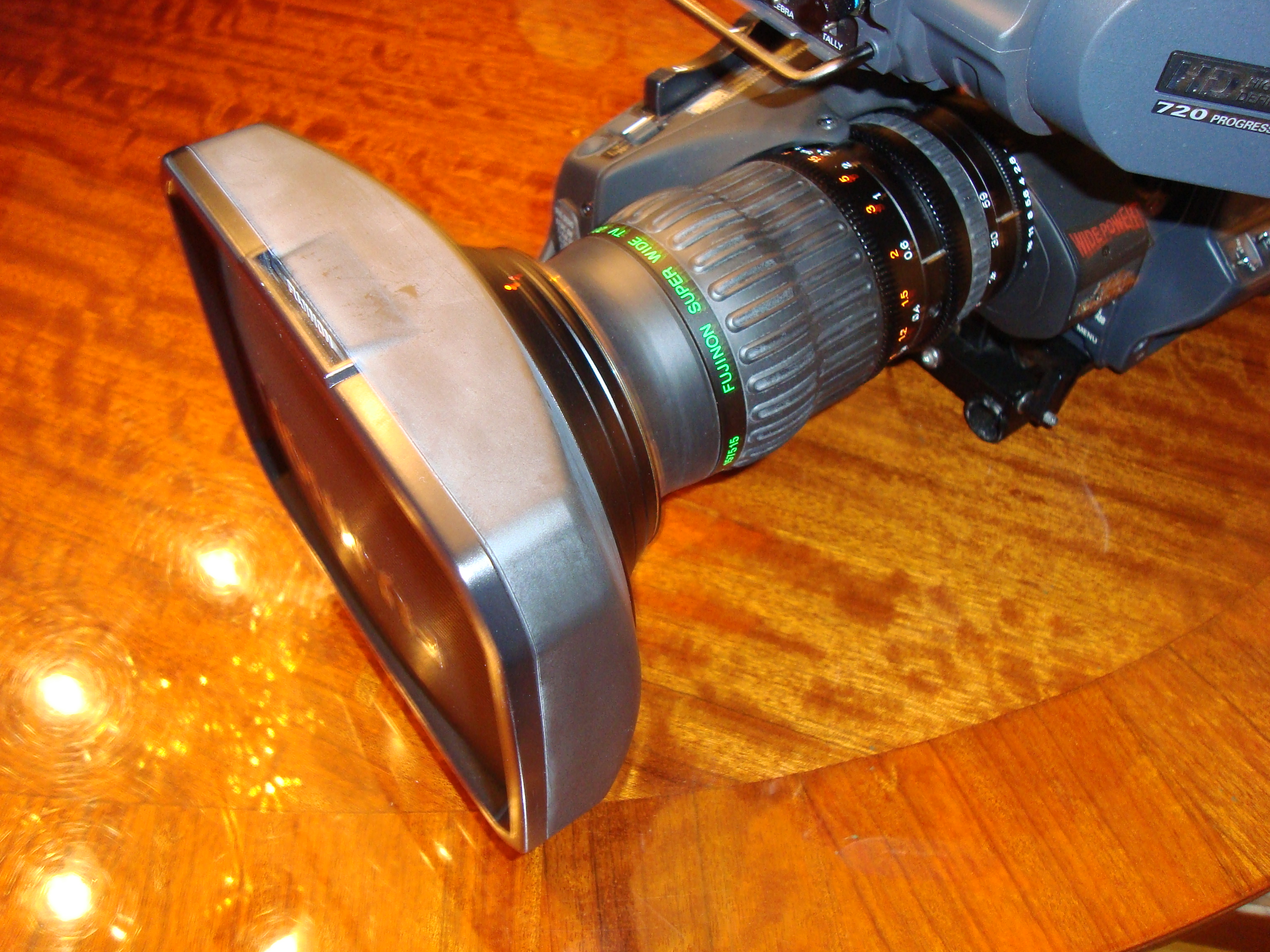

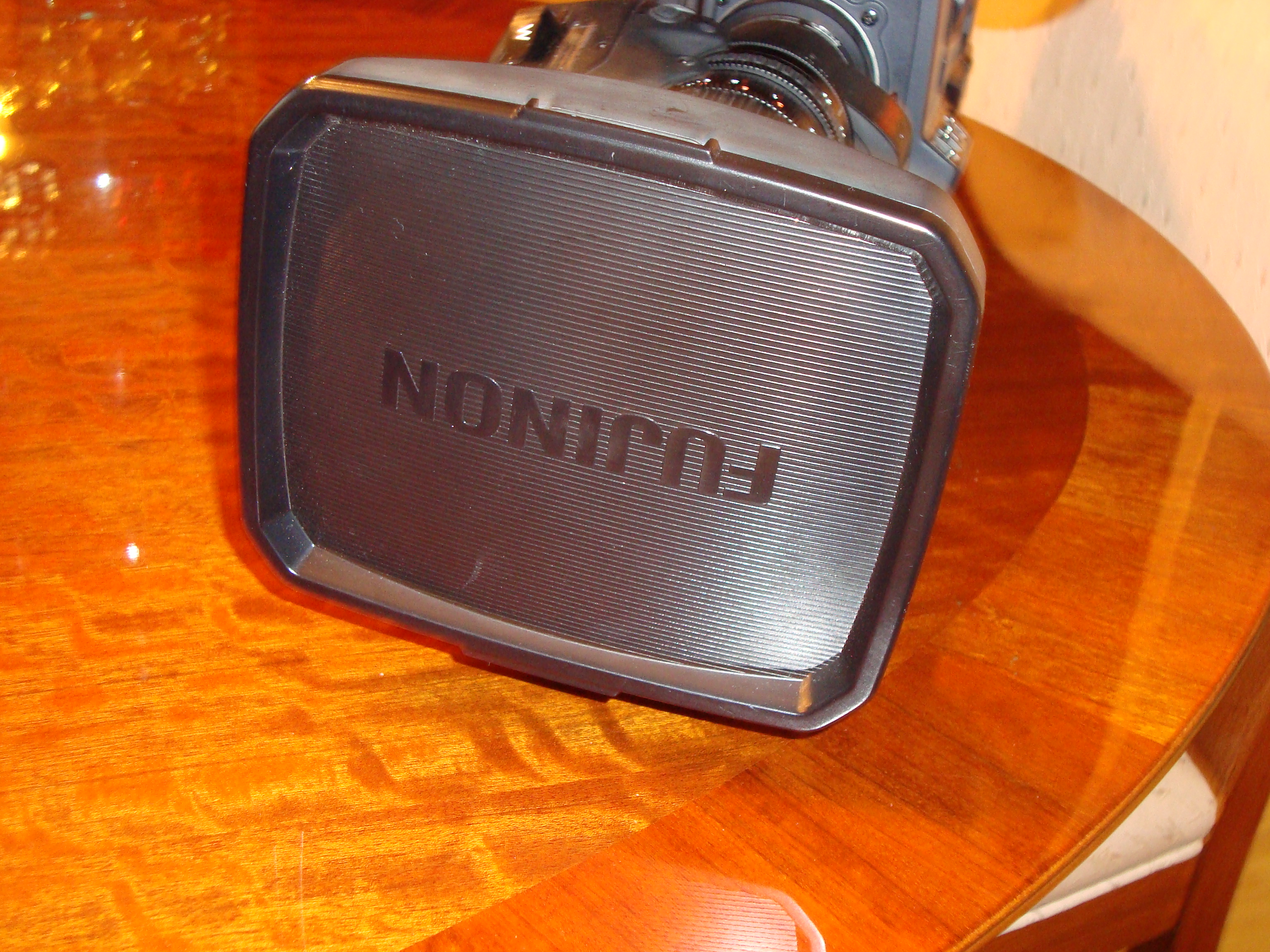

Fujinon HA13x4.5BERM M48 High Definition Lens
-
$11250.00
Contact New Pro
Fujinon HA13x4.5BERM M48 High Definition Lens
Camera Format 2/3
Focal Length
(1X) 6.3 to 101 mm
(2X) 12.6 to 202mm
Zoom Ratio 16X
Extender 2X
Maximum Relative Aperture
1:1.8(6.3 ~ 63 mm)
1:2.9(101 mm)
Maximum Photometric Aperture T-No.
1:2.0(6.3 ~ 63mm)
1:2.9 (101 mm)
Minimum Object Distance from Image Plane 0.6m
Object Dimensions at M.O.D.
(1X) 6.3 mm 712x 400mm
101 mm 45x 25mm
(2X) 12.6mm 362x 203mm
202 mm 28x 16mm
Angular Field of View
6.3 mm 74° 33’ x 46° 19’
101 mm 4° 00’ x 3° 03’
Filter Sizeø 107 mm P=1
Size (Diameter x Length)ø 95x238.5 mm
Weight 1.98 kg
