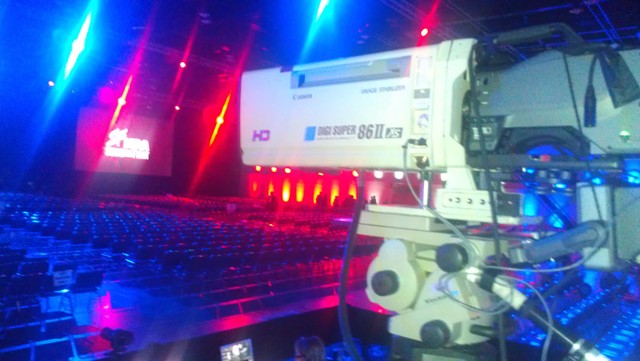

Canon XJ86x9.3B IE-II 9.3-800mm 1:1.7

ULTRA HIGH ZOOM RATIO FIELD LENS WITH IMAGE STABILIZERA

In very Good Working
&
Cosmetic Condition

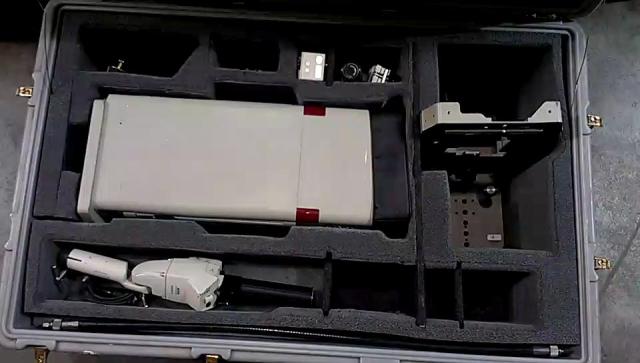

Comes with

Full Servo & Manual Focus Controls

Case

Main Features:

High Zoom Ratio 86x

High Definition Optical Performance

X-Element & Power Optical System

Optical Shift Image Stabilizer

CAFS (Constant Angle Focusing System)

Specifications

Lens Model Number - XJ86x9.3B IE-II

Zoom Ratio - 86x

Built-in Extender - 2.0x

Range of Focal Length (with Extender)

9.3~800mm

18.6~1600mm (2.0x)

Maximum Relative Aperture (with extender)

1:1.7 at 9.3~340mm

1:4.0 at 800mm

1:3.4 at 18.6~680mm (2.0x)

1:8.0 at 1600mm (2.0x)

Angular field of view (with Extender)

4:3 Aspect Ratio

(8.8 x 6.6mm) 50.6° x 39.1° at 9.3mm

0.63° x0.47° at 800mm

26.6° x 20.1° at 18.6mm(2.0x)

0.32° x 0.24° at 1600mm(2.0x)

16:9 Aspect Ratio

(9.59 x 5.39mm) 54.6° x 32.4° at 9.3mm

0.69° x 0.39° at 800mm

28.9° x 16.5° at 18.6mm(2.0x)

0.34° x 0.19° at 1600mm(2.0x)

Minimum Object Distance (M.O.D.) - 3.0m from front lens vertex

Object Dimensions at M.O.D. (with Extender)

4:3 Aspect Ratio

(8.8 x 6.6mm) 253.9 x 190.4cm at 9.3mm

2.8 x 2.1cm at 800mm

127.0 x 95.2cm at 18.6mm (2.0x)

1.4 x 1.1cm at 1600mm (2.0x)

16:9 Aspect Ratio

(9.59 x 5.39mm) 276.4 x 155.5cm at 9.3mm

3.1 x 1.7cm at 800mm

138.2 x 77.8cm at 18.6mm (2.0x)

1.6 x 0.9cm at 1600mm (2.0x)

Macro - No

Size (W x H x L) - 250.6 x 255.5 x 591.5mm

Weight - 23.5kg (51.8lbs)

HD XS The letters "xs " come from the word "Excess", an indication that the new generation of HD xs lenses exceeds all conventional lens specifications and concepts by using breakthrough technologies. HD xs allows for higher specification lenses in smaller and lighter packages.

Optical Performance with an 86x Zoom Ratio and improved Wide Angle

The DIGISUPER 86II xs & DIGISUPER 86II TELE xs are an extraordinary field lens that utilizes Canon's new optical design concept "POWER OPTICAL SYSTEM" and " -Element". By adopting this new technology and concept, the DIGISUPER 86 xs realizes the necessary optical performance for HDTV, with increased zoom ratio of 86x, improved wide angle of 9.3mm while still maintaining the size equivalent to that of current SDTV lenses.

Element & POWER OPTICAL SYSTEM

Canon has developed this breakthrough optical design concept using a newly developed optical element in the most effective way. We have named this design concept the "Power Optical System" which achieves higher specifications and quality using the optical " -Element" which virtually eliminates aberrations.

Image Stabilizer

The history of field lenses is a history of zoom ratio/focal length extension. It came to a point where the industry thought it would be impossible to push the envelope any further. The telephoto focal lengths of the lens got so long that even the slightest amount of wind or operator movement would cause image shake and viewing the picture became intolerable, this was before Canon announced the incredible magnification DIGISUPER 86 xs zoom lens. Canon, renowned for its optical image stabilization technologies, developed another new stabilization solution for the broadcast field lens, a built-in Optical Shift Image Stabilizer

(Shift-IS) to overcome image shaking at telephoto focal length. Now the Shift-IS is employed in the DIGISUPER 86II xs & DIGISUPER 86II TELE xs.

"CAFS" Constant Angle Focusing System

The zooming effect of focus is the phenomena where the picture size (angle of view) changes when focusing (breathing). However, a 32bit CPU calculates and controls the zoom when focusing in order to counteract these phenomena. Thus the DIGISUPER 86II xs & DIGISUPER 86II TELExs have zero zooming effect of focus throughout the whole zoom range.

CROSSOVER COMPATIBILITY

Available optionally is the dual aspect ratio switching system, "CROSSOVER", for switchable 16:9/4:3 cameras.


Latest Generation DIGITAL SERVO SYSTEM

Canon's latest generation digital servo system allows the use of many new functions such as constant angle of view while focusing "CAFS" and the selection of different servo characteristics. These functions are only possible with a digital servo system. In addition to these new functions, the upgrading of software

will be possible when new functions become available in the future. This means that the DIGISUPER 86II xs & DIGISUPER 86II TELExs have unlimited possibilities.
