Sony PMW350L XDCAM EX 2/3"-type Shoulder-mount Camcorder
-
$9450.00
Contact New Pro

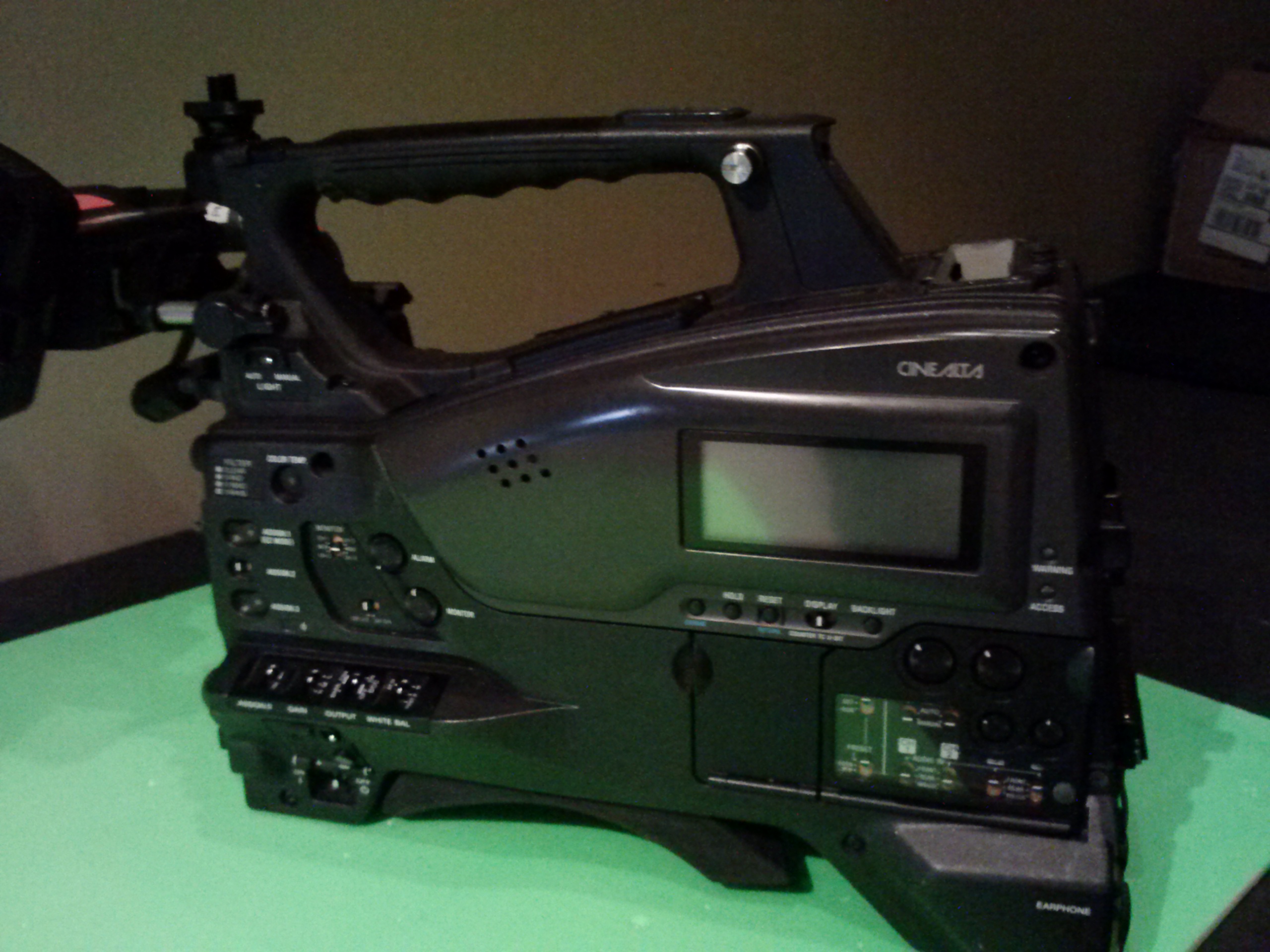

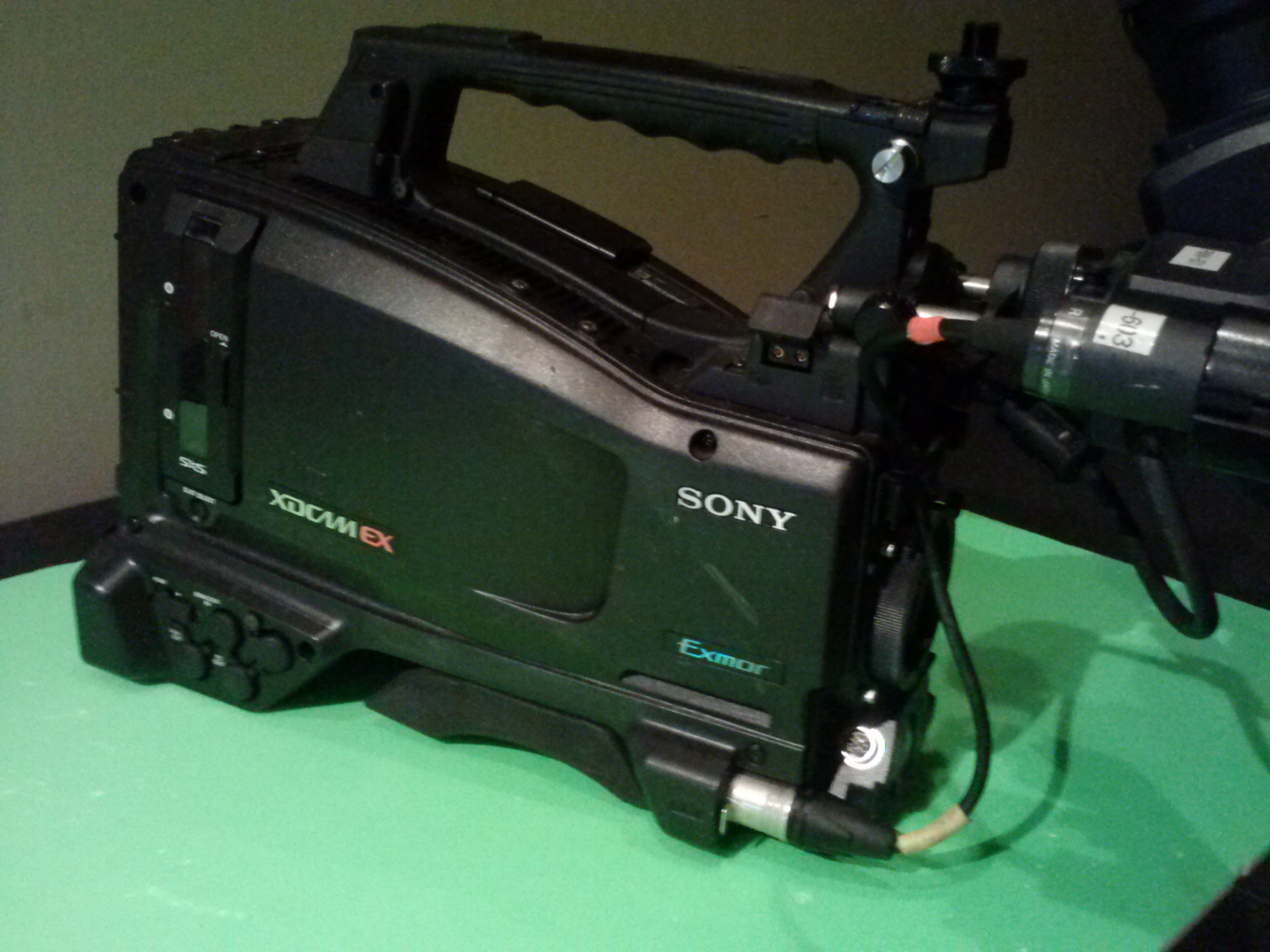

Sony PMW350L XDCAM EX 2/3"-type Shoulder-mount Camcorder
Low Hours 618
Comes With
Tripod plate
Microphone.
The XDCAM EX PMW-350 is the first Sony memory shoulder-mount camcorder, equipped with the cutting edge imaging technology of three 2/3 inch-type Exmor™ full HD CMOS sensors. These sensors, each with an effective pixel count of 1920 (H) x 1080 (V), give the camcorder an excellent sensitivity of F12 and a remarkable signal-to-noise ratio of 59 dB. Additionally, the large 2/3 inch–type sensors can capture images with a shallower depth of field, giving users more freedom of creative expression. The PMW-350 is studio-configurable, with timecode in/out, genlock in, HD/SD SDI and HDMI out, and also features a DVCAM recording option. Designed to be compact and ergonomically well-balanced, the PMW-350, with a main body weight of just over seven pounds, provides a high level of mobility and comfort in a wide variety of shooting situations. In addition, it has a low center of gravity, ensuring outstanding stability on the shoulder; and the PMW-350 is designed to be environmentally friendly thanks to its low power consumption of just 18 watts (while recording with supplied VF, lens, shotgun mic and one (1) SxS card). The PMW-350K model offers customers a Lens Package, equipped with an HD lens with 16x zoom and a standard 2/3-inch bayonet lens mount. The full Sony XDCAM EX line-up provides stunning HD picture quality and efficient nonlinear operation, expanding the creative possibilities in every type of HD video production.
Highlights
Impressive Body Design
Three 2/3-inch-type Exmor Full-HD CMOS Sensors
Low Power Consumption
Unique Focus Operation – Professional Manual Focus and Auto Focus
AF (Auto Focus) Assist Function
MF (Manual Focus) Assist Function
Focus Magnification
Selectable Peaking Color
ALAC (Automatic Lens Aberration Compensation) (with compatible lenses)
Optical ND Filters and Electrical CC Filters
23.98p Native Recording
Slow & Quick Motion Function
Slow Shutter Function
Selectable Gamma Curves
Interval Recording Function
Frame Recording Function
Shutter Angle Settings
ATW (Auto Tracing White Balance) & Hold
Image Inverter
Turbo Gain
DVCAM Recording and Playback with Optional Hardware Key, CBK-DV01
Picture Cache Recording
Four-channel Audio
Total Level Control System (TLCS)
Scene File System
Viewfinder with 3.5-inch (viewable area measured diagonally) Color LCD
Wide Choice of Optional Microphones
Assignable Buttons for Quick Access to Desired Functions
HDMI
Camera Remote Control
Adjustable Shoulder Pad
|
Camera Section Specifications |
Detail: |
|
Built-in Optical Filters |
1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND |
|
Effective Picture Elements |
1920 (H) x 1080 (V) |
|
Gain |
-3, 0, 3 ,6, 9, 12, 18, 24, 30, 36, 42 dB |
|
Horizontal Resolution |
1,000 TV lines or more (1920 x 1080i mode) |
|
Imaging Device |
3-chip 2/3-inch type Exmor Full HD CMOS |
|
Minimum Illumination |
0.003 lx (typical) (1920 x 1080/59.94i mode, F1.9, +42 dB gain, with 64-frame accumulation) |
|
Optical System |
F1.4 prism system |
|
S/N Ratio |
59 dB (Y) (typical) (Noise Suppression mode ON) |
|
Sensitivity (2000 lx, 89.9% reflectance) |
F12 (typical) (1920 x 1080/59.94i mode), F13 (typical) (1920 x 1080/50i mode) |
|
Shutter Speed (Time) |
1/60 sec to 1/2,000 sec |
|
Slow & Quick Motion Function |
720p : selectable from 1 fps to 60 fps as recording frame rate |
|
Slow Shutter |
2-, 3-, 4-, 5-, 6-, 7-, 8-, 16-, 32-, and 64-frame accumulation |
|
White Balance |
Preset (3,200 K), Memory A, Memory B/ATW |
|
General Specifications |
Detail: |
|
Battery Operating Time |
Approx. 310 min with BP-GL95A battery |
|
Dimensions (W x H x D) |
124 x 269 x 332 mm (5 x 10 5/8 x 13 1/8 inches) |
|
Mass |
3.2 kg (7 lb 1 oz) (body) |
|
Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
|
Power Consumption |
Approx. 18 W (with LCD VF, AF lens, mic, while recording in 1080/59.94i) |
|
Power Requirements |
DC 12 V |
|
Recording Format |
Video: MPEG-2 Long GOP HQ mode: VBR, maximum bit rate: 35 Mb/s, MPEG-2 MP@HL SP mode: CBR, 25 Mb/s, MPEG-2 MP@H14 SD mode: DVCAM Audio: Linear PCM (2ch, 16-bit, 48-kHz) |
|
Recording Frame Rate |
NTSC area: HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1280 x 720/59.94p, 29.97p, 23.98p SP mode: 1440 x 1080/59.94i SD mode: 720 x 480/59.94i, 29.97p PAL area: HQ mode: 1920 x 1080/50i, 25p, 1280 x 720/50p, 25p SP mode: 1440 x 1080/50i SD mode: 720 x 576/50i, 25p |
|
Recording/Playback Time |
HQ Mode: Approx. 100 min with SBP-32 (32 GB) memory card Approx. 50 min with SBP-16 (16 GB) memory card Approx. 25 min with SBP-8 (8 GB) memory card SP Mode: Approx. 140 min with SBP-32 (32 GB) memory card Approx. 70 min with SBP-16 (16 GB) memory card Approx. 35 min with SBP-8 (8 GB) memory card |
|
Storage Temperature |
-20 °C to +60 °C (-4°F to +140 °F) |
|
Inputs/Outputs Specifications |
Detail: |
|
Audio Input |
XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable |
|
Audio Output |
XLR-type 5-pin |
|
Composite Output |
VIDEO OUT: BNC type |
|
DC Input |
XLR-type 4-pin |
|
DC Output |
4-pin |
|
EXT 50-pin |
50-pin |
|
Genlock Input |
BNC (x1) |
|
HDMI Output |
A-type (x1) |
|
Headphone Output |
Stereo mini-jack (x1) |
|
Lens Remote |
12-pin |
|
MIC |
XLR-type 5-pin |
|
Remote |
8-pin |
|
SDI Output |
BNC (x1), HD-SDI/SD-SDI selectable |
|
Speaker Output |
Monaural |
|
Timecode Input |
BNC (x1) |
|
Timecode Output |
BNC (x1) |
|
USB |
Device Type B (x1) , Host Type A (x1) (Option) |
|
VF |
26-pin (LCD VF), 20-pin (DXF) |
|
Wireless Receiver IN |
D-Sub 15-pin |
|
i.LINK |
IEEE 1394, 6-pin (x1), HDV (HDV 1080i)/DVCAM stream input/output, S400 |
|
Lens Specifications |
Detail: |
|
Filter Diameter |
M82 mm, pitch 0.75 mm (on lens) |
|
Focal Length |
f = 8 mm to 128 mm (equivalent to 31.5 mm to 503 mm on 35 mm lens) |
|
Focus |
AF/MF/Full MF selectable, 800 mm to ∞ (MACRO OFF), 50 mm to ∞ (MACRO ON) |
|
Iris |
F1.9 to F16 and Close, auto/manual selectable |
|
Lens Mount |
2/3"-type Sony bayonet |
|
Zoom Ratio |
16x (optical), servo/manual (AF lens for PMW-350K) |
|
Monitoring Specifications |
Detail: |
|
Built-in LCD Monitor |
Black & white LCD（Audio level, TC, battery and media remaining capacity） |
|
Viewfinder |
3.5-inch* type color LCD monitor: approx. 921,000 effective pixels, 640 (H) x 3 (RGB) x 480 (V), 16:9, hybrid type |
