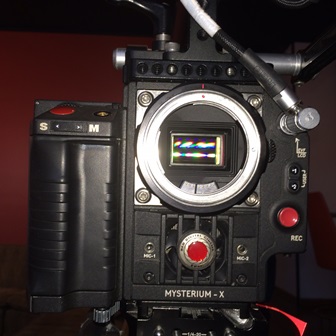

Sensor

14 MEGAPIXEL MYSTERIUM-X®

Pixel Array

5120 (h) x 2700 (v)

S/N Ratio

66 dB

Dynamic Range

13.5+ stops, Up to 18 stops with HDRx®

Max Image Area

5120 (h) x 2700 (v)

Lens Coverage

27.7mm (h) x 14.6mm (v) x 31.4 mm (d)

Acquisition Formats

5K RAW (Full Frame, 2:1, 2.4:1 and Anamorphic 2:1)
4.5K RAW (2.4:1)
4K RAW (16:9, HD, 2:1 and Anamorphic 2:1)
3K RAW (16:9, 2:1 and Anamorphic 2:1)
2K RAW (16:9, 2:1 and Anamorphic 2:1)
1080p RGB (16:9)
720p RGB (16:9)

Project Frame Rates

23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 FPS, all resolutions

Delivery Formats¹

4K: DPX, TIFF, OpenEXR (REDRAY® via optional encoder)
2K: DPX, TIFF, OpenEXR (REDRAY via optional encoder)
1080p RGB 4:2:2, 720p 4:2:2 : Quicktime, JPEG, Avid AAF, MXF
1080p 4.2.0, 720p 4:2:0 : H.264, .MP4

Program Output

HD-SDI Clean Feed
2K RGB, 1080p RGB or 4:2:2, 720p 4:2:2
SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio

Monitor Output

HD-SDI and HDMI with Frame Guides and Lookaround
2K RGB, 1080p RGB or 4:2:2, 720p RGB or 4:2:2
SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio

Digital Media

REDMAG® 1.8" SSD: 48GB, 64GB, 128GB, 240GB, 256GB, 512GB
RED MINI-MAG®: 512GB

Audio

2 channel, uncompressed, 24-bit, 48KHz.
Optional 4 channel, and AES/EBU digital audio.

Monitoring Options

RED Touch 5.0" LCD
RED PRO 7" LCD
RED Touch 7.0" LCD
RED Touch 9.0" LCD
BOMB EVF (LCOS) High Definition Viewfinder
BOMB EVF (OLED) High Definition Viewfinder

Remote Control

REDLINK Wireless, Ethernet, RS232, GPI Trigger

Weight

5 lbs (Body only)

Construction

Aluminum Alloy

Operating Temperature Range

0°C to 40°C (32°F to 104°F)

Storage Temperature Range

–20°C to 50˚°C (–4°F to 122°F)
