Amphibico Amphibican HD Underwater Housing

$19500.00
Contact New Pro

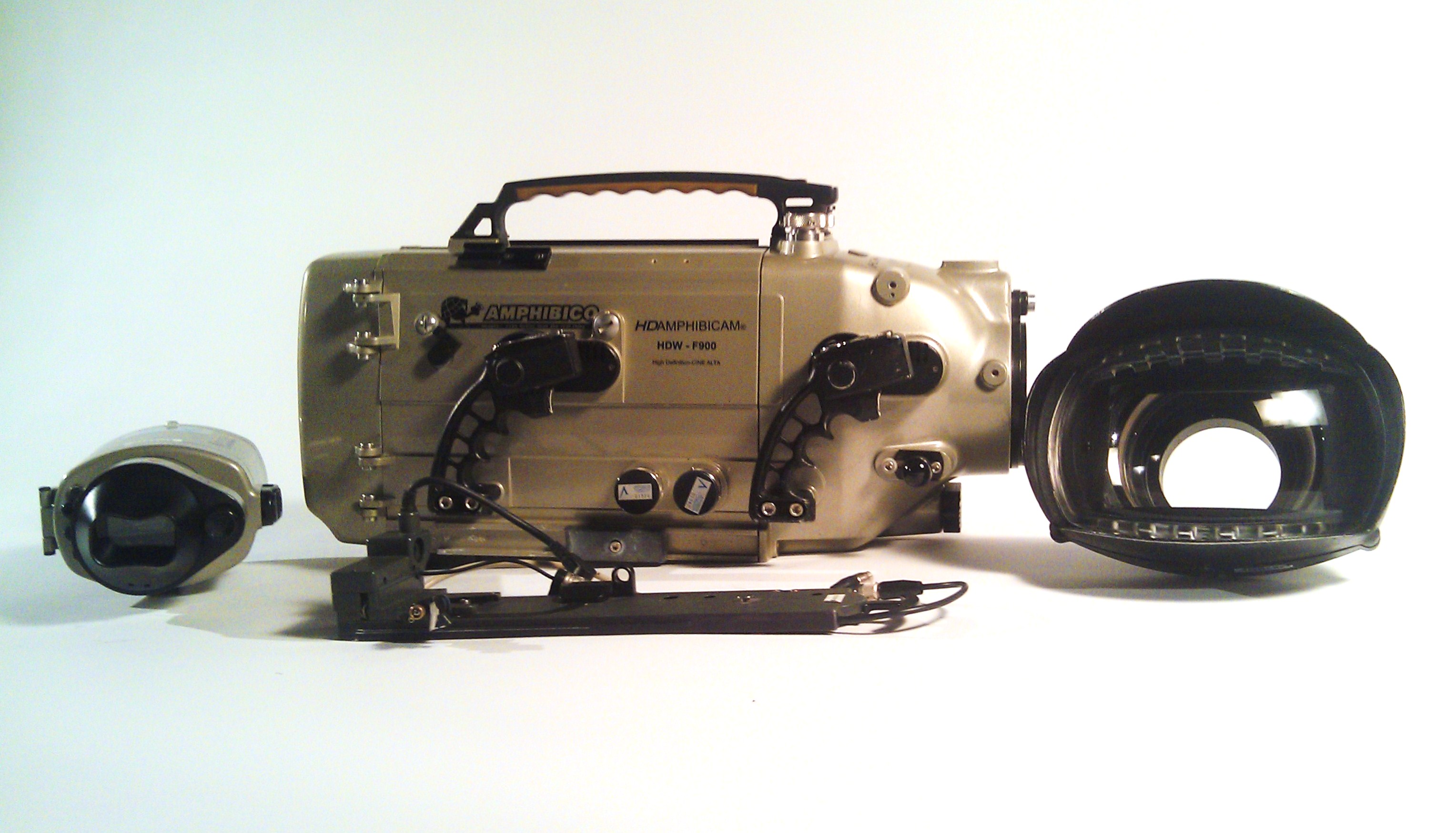

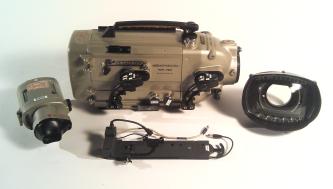

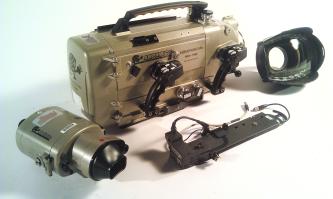

Amphibico Amphibicam HD Pro Video Housing

The Amphibico Amphibicam is a specialty piece of gear made specifically to be used for the Sony F900/F900r camera. It comes with the wide angle front dome glass and a special housing designed to hold the Sony SO-HDVFC30W Color viewfinder (Viewfinder not included). Used,but in good shape.

Comes with

spare front glass element
some spare parts
shipping cases (3)
underwater color chart and operations manual

Less than 10 years old

Includes Operations Manual.

HD Amphibicam Features and Specifications

Operation Pressure:

150 PSI or 10.05 BAR

Dimensions:

Camera Housing with carry handle, grips and lens port: 32" L x 13.5" H x 12.75" W
Colour ViewFinder Housing with sun hood: 12" L x 5" H x 7.5" W

Dry weight:

52 lbs Camera Housing
2 lbs of lead ballast strips located on two undersides
5 lbs Colour ViewFinder Housing

Total displacement of sea water (Pending on camera and viewfinder)

75 to 82 lbs

Neutral Buoyancy:

In fresh water with 0 lbs of lead ballast
In sea water with 2 lbs of lead ballast

Construction:

Marine grade aluminum alloy castings hard anodized and titanium powder coated for maximum corrosion resistance
Marine grade brass and stainless steel hardware

Seals

All dynamic and static dual O-ring seals

HD Amphibicam FRONT Grip Controls (pictures of a representative unit)
Front Left Hand Grip 1. Shift Trigger 2. Variable Servo Focus (lens) 3. Scenes Files 4. White Balance A. Scenes B. Wet Alarm LED	Front Right Hand Grip 1. VTR Record Trigger (lens) 2. Servo Zoom Wheel (lens) 3. ND Filter* 4. CC Filter* A. Record LED B. Wet Alarm LED

HD Amphibicam REAR Grip Controls
Rear Left Hand Grip 1. Man/Auto Iris Trigger 2. Zoom Speed 3. W/B PRST A-B 4. Gain A. B. Wet Alarm LED	Rear Right Hand Grip 1. VTR Record Trigger (Cam) 2. Servo Iris Wheel 3. Wide Angle 4. Telephoto A. Iris Man. LED ON Iris Auro. Led OFF B. Wet Alarm LED

* Camera must be equipped with servo motor

MENU Panel Controls
1. Select Wheel 2. Enter-Button 3. Status-Button 4. Menu Display ON/OFF A. Communication LED B. ON LED Diagnostic Mode Activation (Press 2 and 4 together)
Advanced Functions BARS: Push "ENTER" (2) and "STATUS" (3) simultaneously on the Menu Panel. SCENE FILES (Left Front Grip, Button #3): LED will flash once for scene #1, twice for scene #2, etc. up to 5 scenes. SHIFT key function on left front trigger, if pulled simultaneously with: A) White Balance (W/B): Becomes Black Balance control B) Menu Display ENTER Button (2): Becomes VTR playback mode. VTR playback functions, right side grips buttons: T: Play, W: Stop, ND: Rewind, CC: Fast Forward C) ND Button: Activate Manual Shutter - Once Manual Shutter activated: SHIFT Key with CC Button enables Shutter Speed selection. D) VTR Record (Cam) Trigger: 7 Seconds Review. E) W Button: Activate D5600K

MENU Panel Controls

1. Select Wheel
2. Enter-Button
3. Status-Button
4. Menu Display ON/OFF
A. Communication LED
B. ON LED
Diagnostic Mode Activation (Press 2 and 4 together)

Advanced Functions

BARS: Push "ENTER" (2) and "STATUS" (3) simultaneously on the Menu Panel.
SCENE FILES (Left Front Grip, Button #3): LED will flash once for scene #1, twice for scene #2, etc. up to 5 scenes.
SHIFT key function on left front trigger, if pulled simultaneously with:
A) White Balance (W/B): Becomes Black Balance control
B) Menu Display ENTER Button (2): Becomes VTR playback mode. VTR playback functions, right side grips buttons: T: Play, W: Stop, ND: Rewind, CC: Fast Forward
C) ND Button: Activate Manual Shutter - Once Manual Shutter activated: SHIFT Key with CC Button enables Shutter Speed selection.
D) VTR Record (Cam) Trigger: 7 Seconds Review.
E) W Button: Activate D5600K
