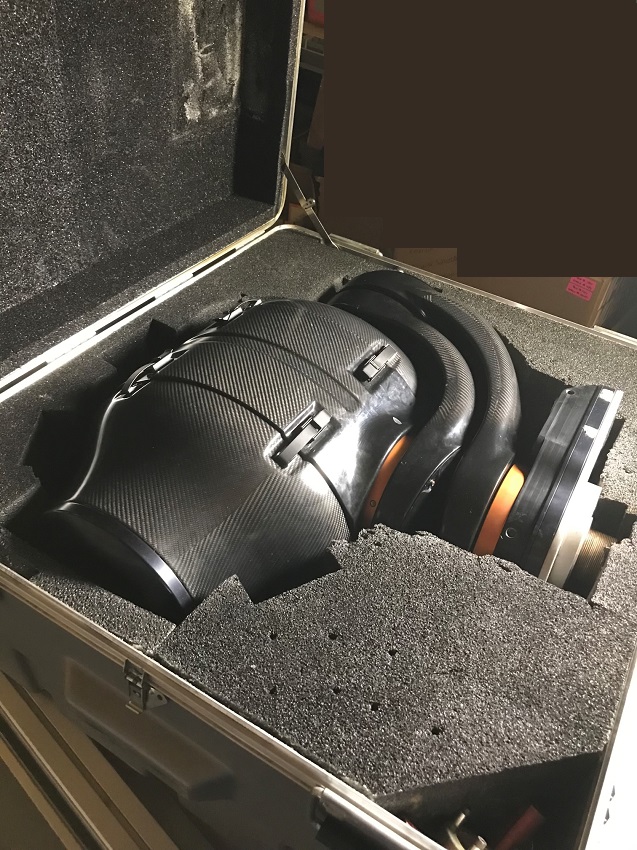

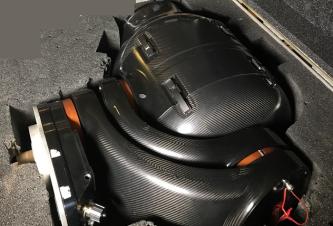

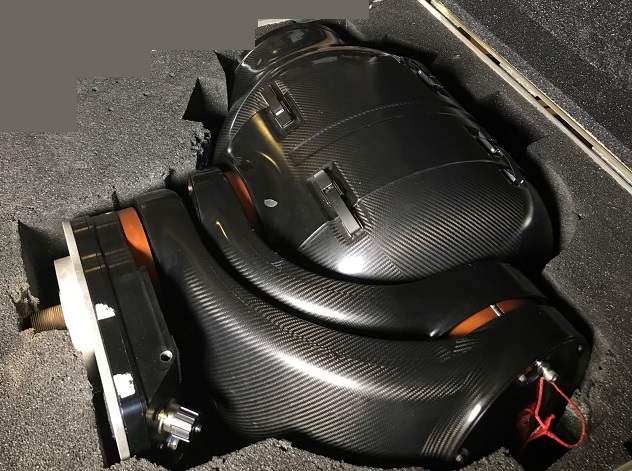

Shotover F16-Axis Gyro Stabilized Gimbal

The Shotover F1 allows you to capture stunning aerial footage.

Take your cinematography work to new heights with the Shotover F1!
No pun intended!
Only 259 Hours!
Just underwent a complete inspection and latest software installed

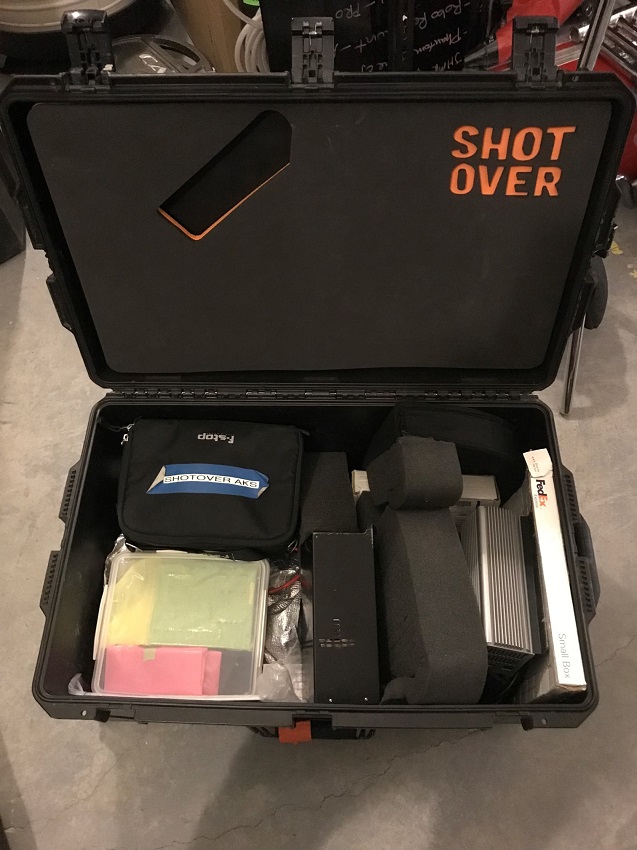

Comes with

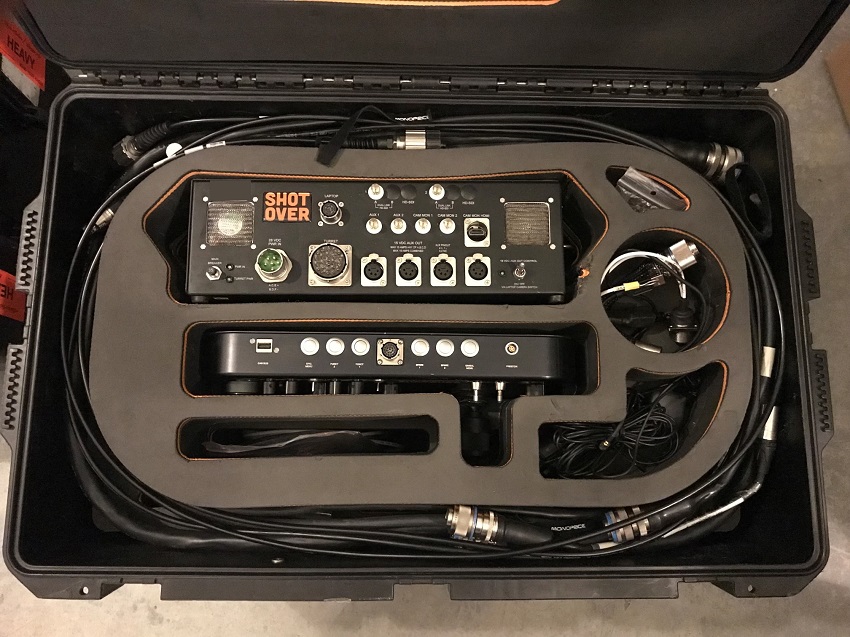

1 Aux Box

1 Laptop Controller

1 Cable Set- Turret, Laptop, Power, Fibre Cable

3 Lens Motors

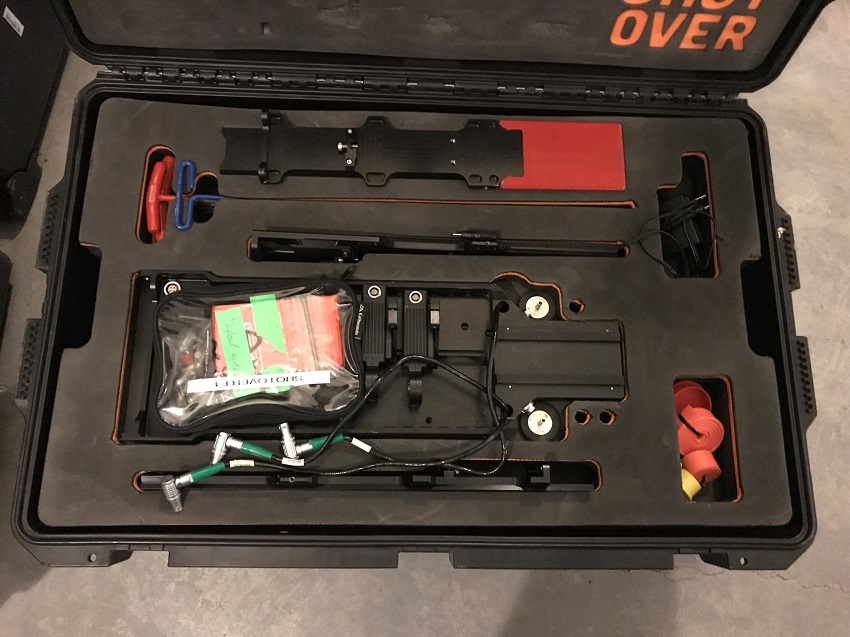

1 Payload Mounting Plates

1 Gimbal to Payload Cables

1 Ground Power Supply & Cord

4 Carry Handles

1 Lap top Tray

1 Front cover

1 Red EVF  5 inch

1 Software Lap top Mac

1 Tarps and Gimbal  soft cover

1 Panasonic BT-LH910 9" LCD Monitor w

1 Panasonic BT-LH910 9" LCD Monitor w

1 Panasonic BT-LH900 9" LCD Monitor

Marshall 6.5" V-LCD651STX monitor

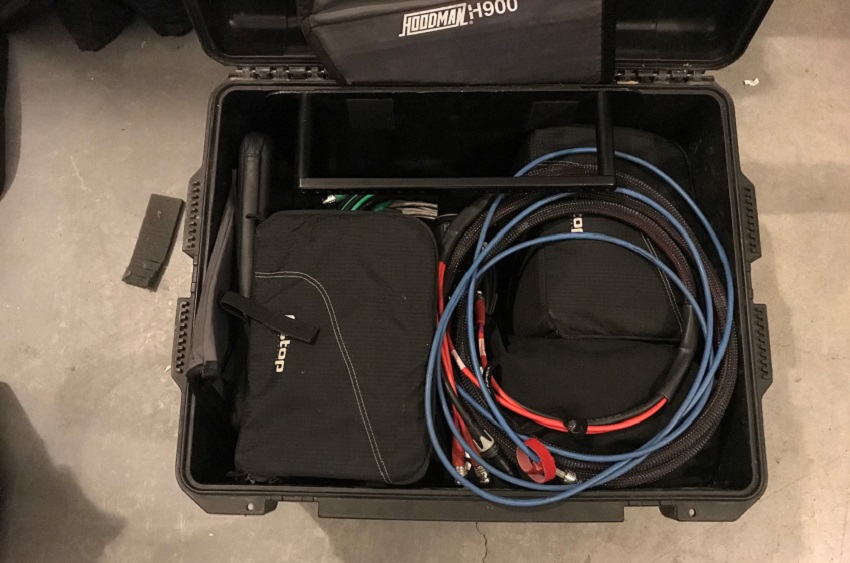

9" Hoodman

Various Power and video cables

1 RED Mini Mag Station

1 System tools

1 Gimbal to camera cables

1 Lens brackets and adapters

1 Brass counter weights

Camera brackets

1 Lens motors

1 Owners manual

1 Spare Heden Lens Motor

1 Spare outer EL motor and assembly

1 Spare fiber optic cable

1 Spare Turret cable

Various ratchet straps

Zip ties, tarps and tape

7 ND filters .6(2x)Clear (2x)ND .3,.9,1.2

4 RED Mini Mag Side SSD

1 Lens cleaning kit

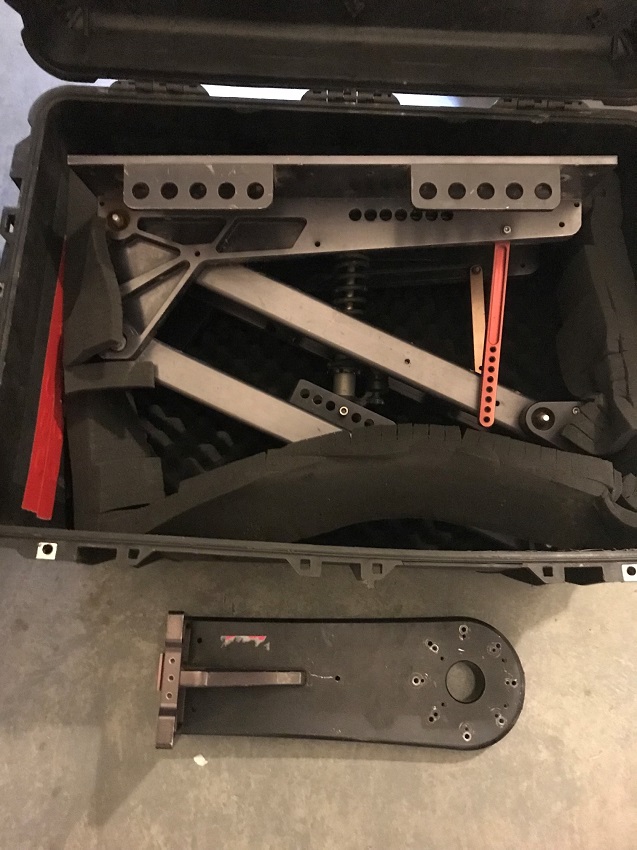

1 Conical top plate

Various Monitors mounts

Various Cables

Spare hardware and tools

Various Tools

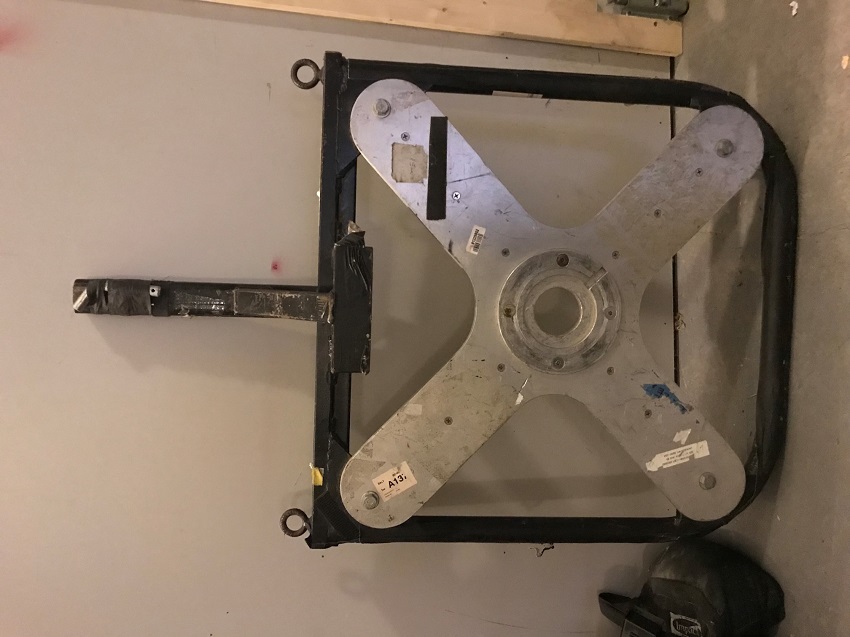

vehicle hitch mount

uni mount

System Features

• Quickly and easily interchange multiple cameras and lenses
• Compact size and weight allows affordable transport as freight or excess baggage
• No ITAR restrictions or EAR licensing requirements
• Compatible with most FAA and EASA approved aircraft mounts
• Various top plate options are available to easily allow mounting on various platforms- land, sea and air
• Easily integrated onto a wide variety of mounting platforms
• 6-axis gyro stabilized with look down capability
• Windowless operation option for brilliant imagery without reflections
• Fiber optic video data transfer for clean 3GHz imagery
• State of the art electronics and design techniques deliver unshakable stability and ultimate functionality
• Customizable graphics overlay for real time operator feedback
• Auto or Steerable horizon with the most advanced steering capabilities on the market
• Inverted operation using auto-position detectors
• Remote controlled polarized filter rotation, rain deflector and other accessories available

Product Specifications

STABILIZATION

6-axis with no gimbal lock

High performance non-ITAR sensors

Distributed Multi-processor closed loop servo control system

Proprietary gimbal control algorithms

GIMBAL FIELD OF VIEW

Pan: 360 degrees continuous (via electrical and optical rotary joints)

Tilt: +45 to -140 degrees

Roll: +/-85 degrees (steerable or auto horizon)

Max slew rate: 100 deg/sec

DATA / COMMUNICATION

Fiber Optic lines

CAN Bus

RS 422 Serial Bus

Ethernet

WEIGHT

Turret with max payload less than 59kg (130lbs)

Operator control unit 2.7kg (6lbs)

Junction control box 4kg (9lbs)

External cable set: 2.5kg (5.5lbs)

Fujinon 25-300 and Arri/Fujinon Alura 45-250 lens cases 61kg (134lbs)

POWER

19-32 VDC

12 Amps Max Draw (at 28V)

ENVIRONMENTAL

Operating Temperature: -20 to +50 degrees C
